1080P Full HD Wide Angle
Support 1080P full HD, and can provide 1080@30fps/25fps image coding output. At the same time, it is compatible with 720P equal resolution downwards, with wide field of view angle, and the maximum horizontal field angle can be more than 120 degree.

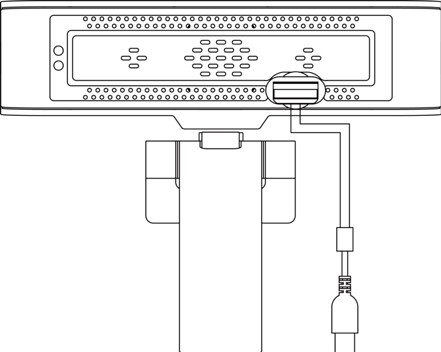

Full-featured USB 2.0 interface, power supply, video and audio all in one, it can also support audio and video calls.
Built-in microphone array, it can pick up sound distance up to six meters, unique noise suppression algorithm, make your voice perfect presentation.
The application of 2D and 3D noise reduction algorithm greatly reduces the image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB.
Standard damping rotary shaft support, suitable for monitors, easy installation, stable and reliable.
This product should be placed on the smooth desktop. The shell of the product is an organic material and is strictly prohibited from contact with any liquid, gas or solid material that may cause corrosion to the shell.
Do not disassemble
This product has no parts which can be repaired by the user. The damage caused by the user’s own disassembly is not covered by warranty.
Electromagnetic fields at specific frequencies may affect image of machine.
1/2.7’’, CMOS, Effective Pixel: 2.07M
Focus: f=3.1mm, FOV: 120°
0.05 Lux @ (F1.8, AGC ON)
1/30s ~ 1/10000s
Auto, Manual VAR
Bracket with damper
Digital Noise Reduction
2D, 3D digital noise reduction
Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher, macOS™ 10.10 or higherGoogle™ Chromebook™ Version 9.0.1547.70 or higher, Linux
2.4 GHz Intel® Core 2 Duo processor or higher2 GB RAM or moreUSB 2.0 port
Color system / Compression
YUY2 / H.264 / MJPEG
1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps
USB Video Communication
1x UXB 2.0: Type A
5V (USB power supply)
-10°C ~ 40°C
-40°C ~ 60°C
118mm x 37.2mm x 30.8mm (without bracket)
0.093 Kg (without bracket)
Maintenance & Troubleshooting.

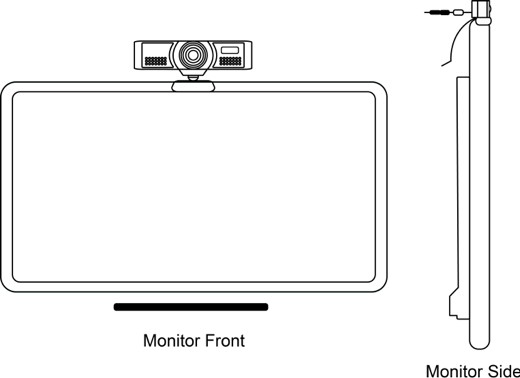

When the monitor thickness is less than or equal to 170mm, the mounting method can be selected to mount the conference camera product on the monitor. The specific installation is shown in the following figure:
If the camera is not in long-term use, please disconnect the power switch after use.
Use soft cloth or cotton paper to remove dust from the camera housing.
When cleaning the camera lens, please use dry soft cloth to wipe, if dirt is visible, use neutral cleaner gently. Do not use strong or corrosive detergent, if the lens is scratched, it affects the image .
The camera should avoid shooting particularly bright objects, such as sunlight, lights, etc.
The camera should not work under unstable lighting conditions, otherwise the image will flash.
Do not use around facilities that can transmit high-power radio waves, such as television stations or radio-transmitting stations.
If the image is jittery after the camera is properly connected:
Check whether the camera's installed position is stable.
Check whether vibrating machinery or object is near the camera.
Toxic & Harmful Substances
TOXIC OR HARMFUL SUBSTANCES OR ELEMENTS
This form is compiled in accordance with SJ/T 11364.
O: Indicates that the content of the hazardous substance in all homogenized materials of the component is subject to the limit specified in GB/T 26572.
X: Said the hazardous substance in at least one of the components homogenized material content in excess of the GB/T 26572 limit requirements, and there are no mature alternatives.
If failure caused by non-human causes occurs within one year from the date of purchase of the machine, you may enjoy the warranty service of the product. Any of the following circumstances is not covered by the warranty:
Without disassemble, modification such as fault causes.
Use of an environment does not conform to requirements of the product.
Irresistible factors, such as fire, earthquake, lightning strike, etc.
Warranty card does not match the product number or it is altered.
User Address / Post Code
