i3CAMERA FHD

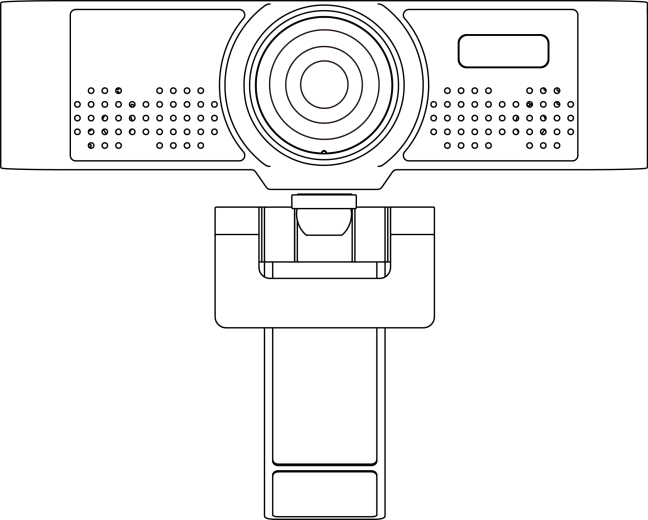

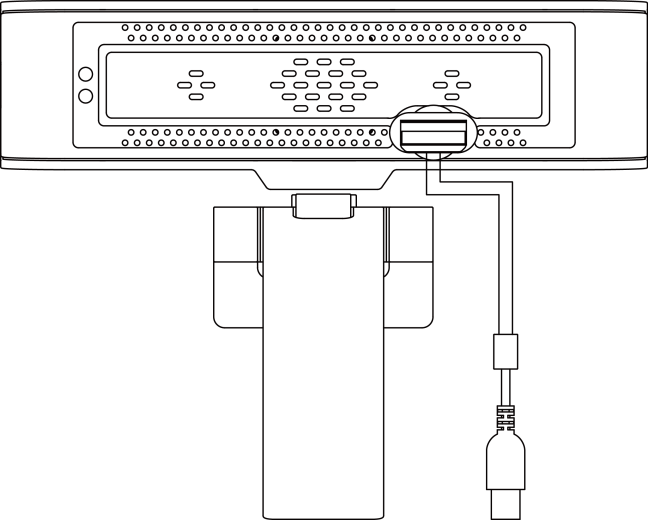

Product Appearance

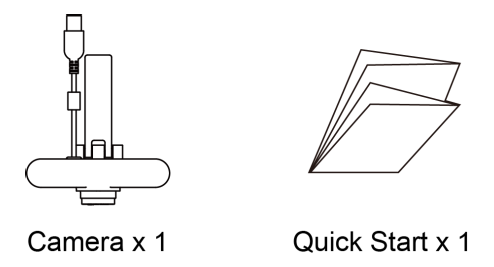

What’s in the box?
i3CAMERA F1201
Quick Start Guide
Product Features
1080P Full HD Wide Angle
1080P full HD, and can provide 1080@30fps/25fps output with wide field of view angle of 120 degrees.
USB 2.0
Full-featured USB 2.0 interface, power supply, video and audio all in one, audio and video calls.
Built-in Microphone
Built-in microphone array.
Low-light
The application of 2D and 3D noise reduction algorithm greatly reduces the image noise.
Easy installation
Standard damping rotary shaft support, easy installation, stable and reliable.
Product Specifications
CAMERA | |
|---|---|
Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
Scanning Mode | Progressive |
Lens Mount | M12 |
Lens | Focus: f=3.1mm, FOV: 120° |
Minimal Illumination | 0.05 Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
Camera bracket | bracket with damper |
Digital Noise Reduction | 2D, 3D digital noise reduction |
Backlight Compensation | Supported |
USB FEATURES | |
|---|---|
Compatible Operating System | Windows XP/2003/VISTA/7/8/10, Linux, MacOS, Android |
Color / Compression | MJPEG/YUY2/H.264 |
Resolution | MJPEG: 1600x896 (default), 160x120, 176x144, 320x240, 352x288, 640x480, 720x576, 1280x720, 1024x768, 1024x576,960x540, 848x480, 800x600, 800x448, 640x360, 480x272, 424x240, 320x180, 1920x1080 |
YUY2: 1920x1080 (default), 160x120, 176x144, 320x240, 352x288, 640x480, 1280x720, 960x540, 640x360, 480x272, 424x240, 320x180 | |
H.264: 1600x896 (default), 160x120, 176x144, 320x240, 352x288, 640x480, 720x576, 1280x720, 1024x768, 1024x576, 960x540, 848x480, 800x600, 800x448, 640x360, 480x270, 424x240, 320x180, 1920x1080 | |
USB Communication Protocol | UVC 1.0 |
USB FEATURES | |
|---|---|
USB Interface | 1 x USB 2.0: Type A |
PHYSICAL SPECIFICATIONS | |
|---|---|
Input Voltage | 5V (USB power supply) |
Power Consumption | 0.27A (1.4W) |
Operating Temperature | -10°C ~ 40°C |
Storage Temperature | -40°C ~ 60°C |
Size | 118mm x 37.2mm x 30.8mm (without bracket) |
Weight | 93 g (without bracket) |
MTBF | ＞30000h |
Installation

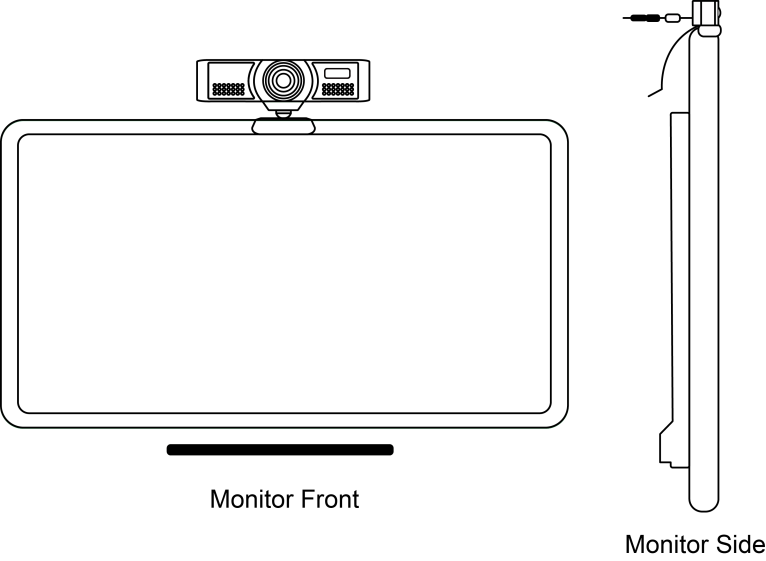

When the monitor thickness is less than or equal to 170mm, the mounting method can be selected to mount the conference camera product on the monitor. The specific installation is shown in the following figure:
Maintenance & Troubleshooting
Camera maintenance
If the camera is not in long-term use, please disconnect the power switch after use.
Use soft cloth or cotton paper to remove dust from the camera housing.
When cleaning the camera lens, please use dry soft cloth to wipe, if dirt is serious, use neutral cleaner gently. Do not use strong or corrosive detergent, lest the lens scratch, affect the image effect.
Avoid
Shooting particularly bright objects, such as sunlight, lights, etc.
Unstable lighting conditions, otherwise the image will flash.
Do not use around high-power radio waves, such as television stations or radio-transmitting stations.
Troubleshooting
After the camera is properly connected.
Check whether the camera’s stability is good.
Check whether there is vibrating machinery or objects near the camera.
