Product Overview

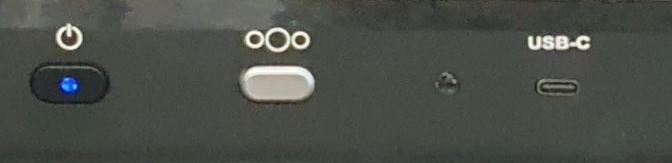

Front controls & connections

  1. [i3SIXTY-365 only] Power button

  2. [i3SIXTY-365 only] Multi-Function Button

  3. [i3SIXTY-365 only] Sensor

  4. [i3SIXTY-365 only] USB 3.2 Type C with 100 Watt PowerDelivery


Side controls & connections

  1. USB 2.0 Type A (x2)

  2. USB 3.2 Type C with 15 Watt PowerDelivery

  3. DisplayPort 1.4

  4. USB 3.1 Type B for TOUCH for HDMI 2 and DisplayPort

  5. [i3SIXTY-350 only] USB 2.0 Type MicroB OTG

  6. HDMI 2.0 Input 1 including ARC

  7. HDMI 2.0 Input 2

  8. USB Type B for TOUCH for HDMI 1

  9. USB 3.2 Type A Gen 2x2 (x2)

  10. [i3SIXTY-350 only] Power button

  11. [i3SIXTY-350 only] USB 3.2 Type C with 65 Watt PowerDelivery

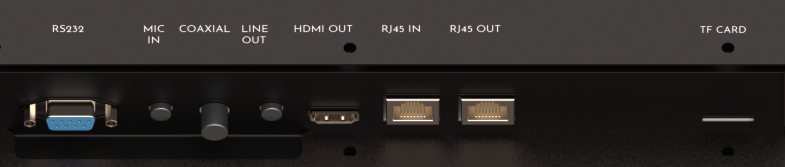

Bottom controls & connections

  1. DB-9 Serial Control

  2. Audio 3.5mm TRS Input

  3. Coaxial Digital Audio Output

  4. Audio 3.5mm TRS Output

  5. HDMI Output

  6. RJ-45 LAN (x2, in/out)

  7. [TF card - internal use only]


Integrated power management

  1. Power input C-14 (male)

  2. General power switch

Product information

  1. Identification label (with product name & serial number (visible when installed)

  2. Extended product label with product information and regulatory information
