Product Overview

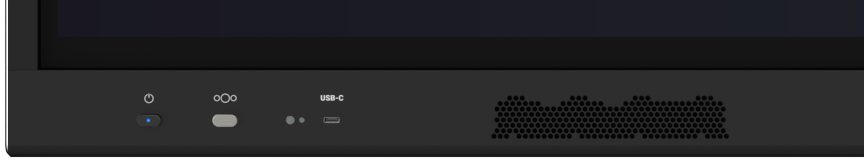

Front controls & connections

  1. Power button with status indicator LED

  2. Function Button

  3. Infrared sensor for remote control unit

  4. Ambient Light Sensor

  5. USB 3.2 Type C, with 100 Watt PowerDelivery

  6. Loudspeakers

  7. Radar Motion Sensor

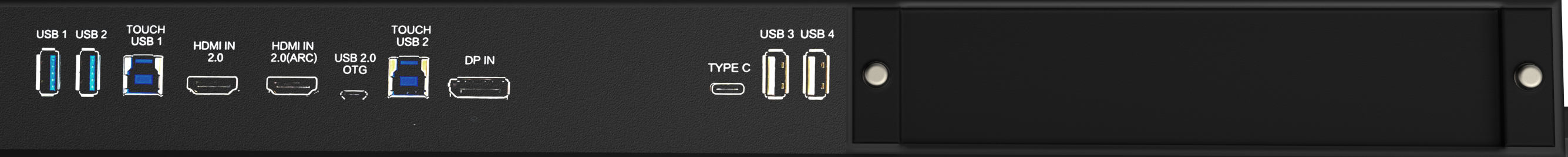

Side controls & connections

  1. OPS slot

  2. USB 2.0 Type A (x2)

  3. USB 3.2 Type C with 10 Watt PowerDelivery

  4. DisplayPort 1.4

  5. USB 3.1 Type B for TOUCH for HDMI 2 and DisplayPort

  6. USB 2.0 Type MicroB OTG

  7. USB Type B for TOUCH for HDMI 2 & DP

  8. HDMI 2.0 Input 1 including ARC

  9. HDMI 2.0 Input 2

  10. USB Type B for TOUCH for HDMI 1

  11. USB 3.2 Type A Gen 2x2 (x2)

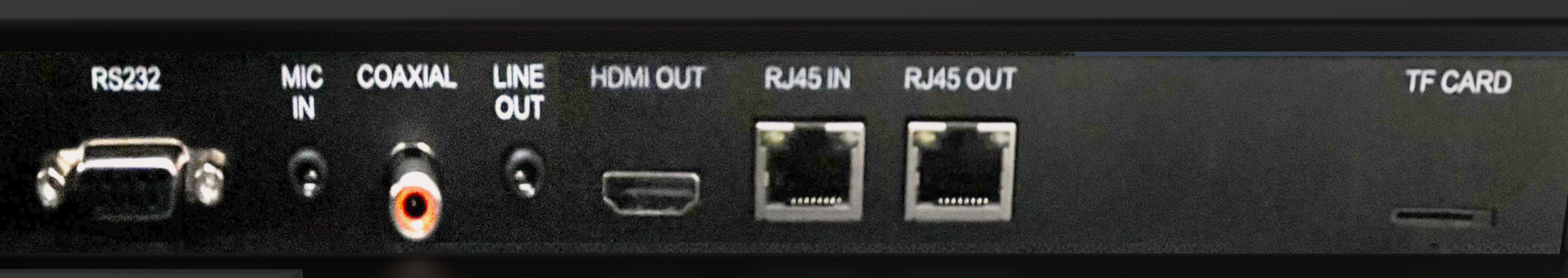

Bottom controls & connections

  1. DB-9 Serial Control

  2. Audio 3.5mm TRS Input

  3. Coaxial Digital Audio Output

  4. Audio 3.5mm TRS Output

  5. HDMI Output

  6. RJ-45 LAN (x2, in/out)

  7. [TF card - internal use only]

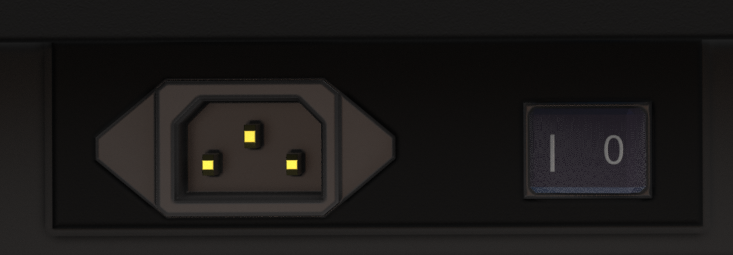

Integrated power management

  1. Power input C-14 (male)

  2. General power switch


Product information

  1. Identification label (with product name & serial number (visible when installed)

  2. Extended product label with product information and regulatory information
