Powering the Projector On / Off
Powering the Projector On / Off
Powering On the Projector
Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Orange.

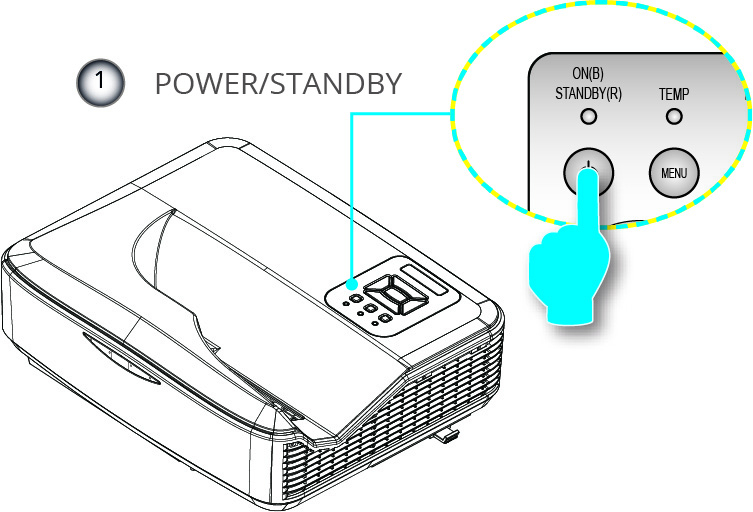

Turn on the lamp by pressing the power button either on the projector or on the remote. At this moment, the POWER/STANDBY LED will now turn Blue.
The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language and power saving mode.
Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the “INPUT” button on the control panel or direct source keys on the remote control to switch between inputs.
When the power mode is in standby mode (power consumption < 0.5W), the VGA output/ input and audio will be deactivated when the projector is in standby.
Turn on the projector first and then select the signal sources.
Powering Off the Projector
Press the power button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen.
Press the power button again to confirm otherwise the message will disappear after 10 seconds. When you press the power button for the second time, the fan will start cooling the system and will shut down.
The cooling fans continue to operate for about 4 seconds for cooling cycle and the POWER/STANDBY LED will flash Orange. When the POWER/STANDBY LED lights solid Orange, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press the power button to restart the projector.Disconnect the power cord from the electrical outlet and the projector.
Do not turn on the projector immediately following a power off procedure.
Warning Indicator
When the warning indicators (see below) come on, the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “POWER/STANDBY” indicator flashes amber.
“TEMP” LED indicator is lit red, this indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator flashes red and if “POWER/STANDBY” indicator flashes amber.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up again, please contact your nearest service center for assistance.
Contact the nearest service center if the projector displays these symptoms.
