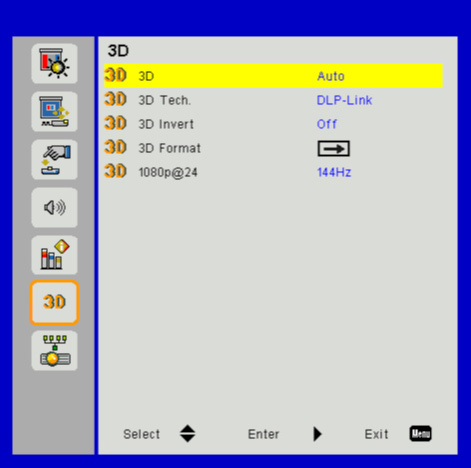

3D

3D

  • Auto: When HDMI1.4 3D timing identification signal is detected, the 3D image is selected automatically.

  • Choose  “Off”  to  disable  3D function.

  • Choose  “On”  to  enable  3D function.

3D Tech.

Use this option to select 3D technology.

  • DLP-Link: Select to use optimized settings for DLP 3D Glasses.

  • 3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.

3D Invert

Use this option to enable/disable the 3D invert function.

3D Format

Use this feature to select the 3D format. Options are: “Frame Packing”, “Side-by-Side (Half)”, “Top and Bottom”, “Frame Sequential” and “Field Sequential”.

1080p @24

Use this feature to select 96 or 144Hz refresh rate as using 3D glasses in the1080p @ 24 frame packing.

“Frame Sequential” is supported the DLP Link 3D input signals from VGA / HDMI connector.

“Frame Sequential” / “Field Sequential” are supported the HQFS 3D input signals from Composite/ Svideo connector.

“Frame Packing” / “Side-by-Side(Half)” / “Top and Bottom” are supported from HDMI 1.4a 3D input signals.
