General Safety Precautions
Thanks for purchasing this product. Please read the instructions carefully before using this product.
Please keep this manual for future reference. This manual is a general manual, the pictures are for reference only, please refer to the real product.
Recycling.
This product should not be placed in municipal waste. Instead, dispose of waste equipment by taking it to a designated collection point for electrical and electronic equipment recycling.
Safety Instruction.
For your safety, please read the following instruction before operating the product. Serious injury or property damage may be caused by improper operation. Do not try to repair the product by your own.
 | Disconnect the product from power supply immediately if major failures occur. Major failures include the following:
In the preceding scenarios, do not continue to use the product. Disconnect power supply immediately and contact professional staff for troubleshooting. |
 | Do not drop liquid, metal or anything combustible into the product.
|
Put the product on a stable surface. An unstable surface includes and does not limited to an inclined plane, a shaky stand, desk or platform, which might cause turnover and damage. | |
 | Do not open the cover or change the product on your own. High voltage components are installed in the product. When you open the cover, high voltage, electric shock, or other dangerous situations may occur. If inspection, adjustment, or maintenance is required, contact the local distributor for help. |
 | Use the specified power supply.
|
Clean the power plug regularly.
| |
 | Do not put items on the top of the product.
|
 | Do not install the product in an improper place
|
 | Pull out the power supply during thunderstorms.
|
 | Do not touch the power cable with wet hands. |
Caution
 | Do not install the product in high temperature environments.
|
| When transporting the product:
|
 | Do not cover or block up any vents on the product.
|
| Keep the product away from the radio. The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio. If noise occurs in the radio, try the following solutions.
|
Do not damage the power cable.
| |
Use the battery correctly.
| |
Additional advice：
| |
Special remarks：
|
Product Appearance

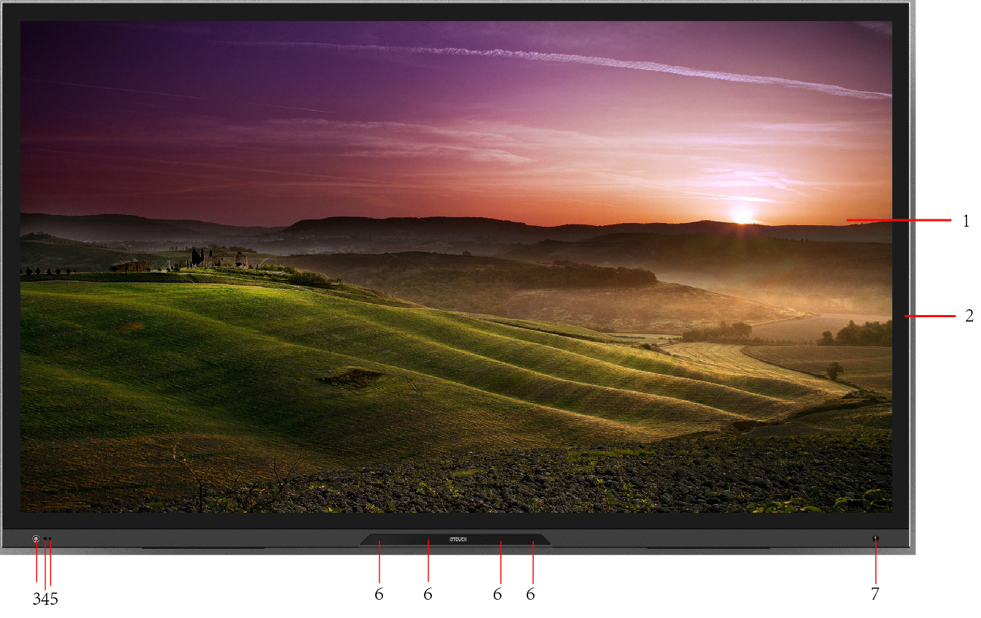

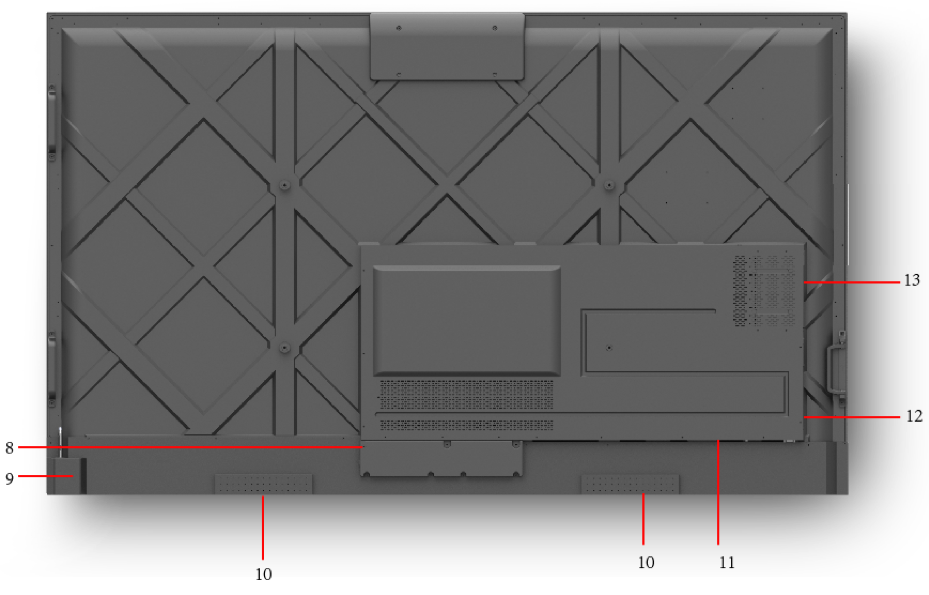

Parts.
Parts | ||
1 | LCD Panel |   |
2 | Touch TP | |
3 | Power Button | |
4 | IR Receiver | |
5 | Light Sensor | |
6 | MIC | |
7 | Proximity Sensor | |
8 | Power Port & Switch | |
9 | Stylus Pen box | |
10 | Speakers | |
11 | Rear Port 1 | |
12 | Rear Port 2 | |
13 | Computer Port (OPS) | |

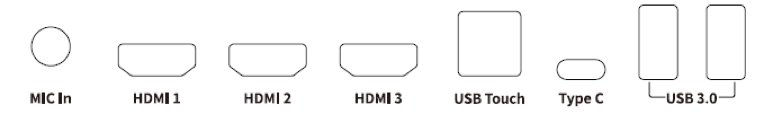

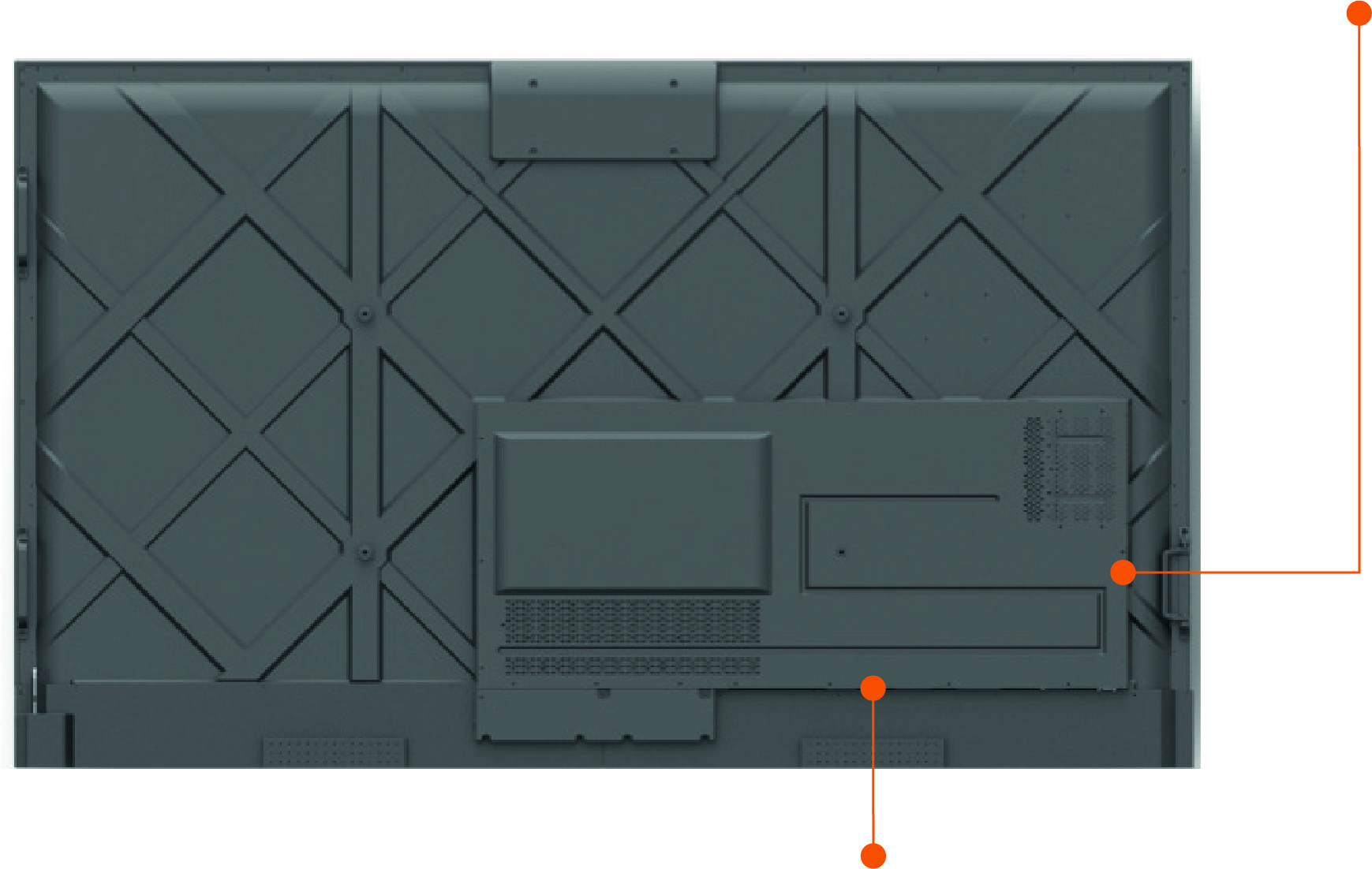

Rear Ports.
Warning! The voltage/current of the rear power output port is 5 V/2 A (maximum). Purchase the power code/AC adapter according to customer needs. Please do not connect any products with different power requirement. Otherwise it may cause the damage to products or fire.
Port | Function |
MIC IN | Microphone input port. |
HDMI 1 | HD signal input port 1. Use with “USB Touch”，to achieve the touch mode of PC operation. |
HDMI 2 | HD signal input port 2. Use with “USB Touch”，to achieve the touch mode of PC operation. |
HDMI 3 | HD signal input port 3. Use with “USB Touch”，to achieve the touch mode of PC operation. |
USB Touch | Connect to the PC's touch port. |
Type C | Connect to devices with Type C interface, such as USB flash drive, MAC, PC, or mobile phone with OTG function. Output up to 45W power source. Supports data, audio, video, and power charging. |
USB3.0 | System upgrade, local play. |

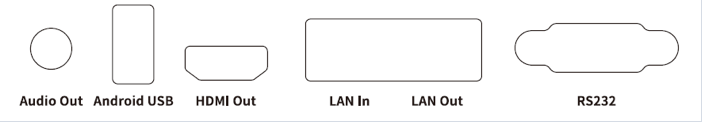

Audio Out | Connect the audio output device. Such as headphones, speakers or other equipment. |
Android USB | Connect the USB device. Such as mobile hard disk, U disk, USB keyboard, mouse. When the display screen is on android, the device on USB is used by android. When switching to OPS channel, the USB device is connected to OPS. |
HDMI Out | Connect electronic video device with HDMI input. |
LAN IN | Connect to the router. |
LAN out | Connect to the RJ45 Port |
RS232 | Serial port signal input interface. |
Remote control.
To avoid probable faults, please read the following instructions and use the remote controller properly:
Do not drop or beat the remote controller.
Do not spill water or other liquid on the remote controller.
Do not put the remote controller on wet items.
Do not expose the remote controller under sunlight or put it near overheated source.

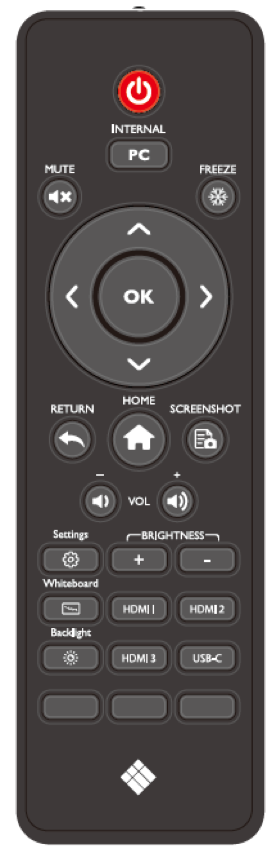

| Button | Function |
 | Power on/off. | |
PC | Switch to the internal PC source. | |
 | Mute or unmute. | |
 | Freeze the Current Screen Click Again to Exit Freeze Function | |
 | Up/Down/Left/Right selection button. | |
OK | Confirm button. | |
 | Return to Previous/Exit | |
 | Return to homepage | |
 | Take a screenshot. | |
 | Decrease the volume | |
 | Increase the volume | |
 | Enter the Settings application | |
+ | Increase the brightness | |
- | Decrease the brightness | |
 | Press to enter the i3NOTES whiteboard application | |
 | Toggle Display Backlight Mode | |
HDMI 1/2/3 | Switch to HDMI 1/2/3 video signal source | |
USB-C | Switch to USB-C video signal source |

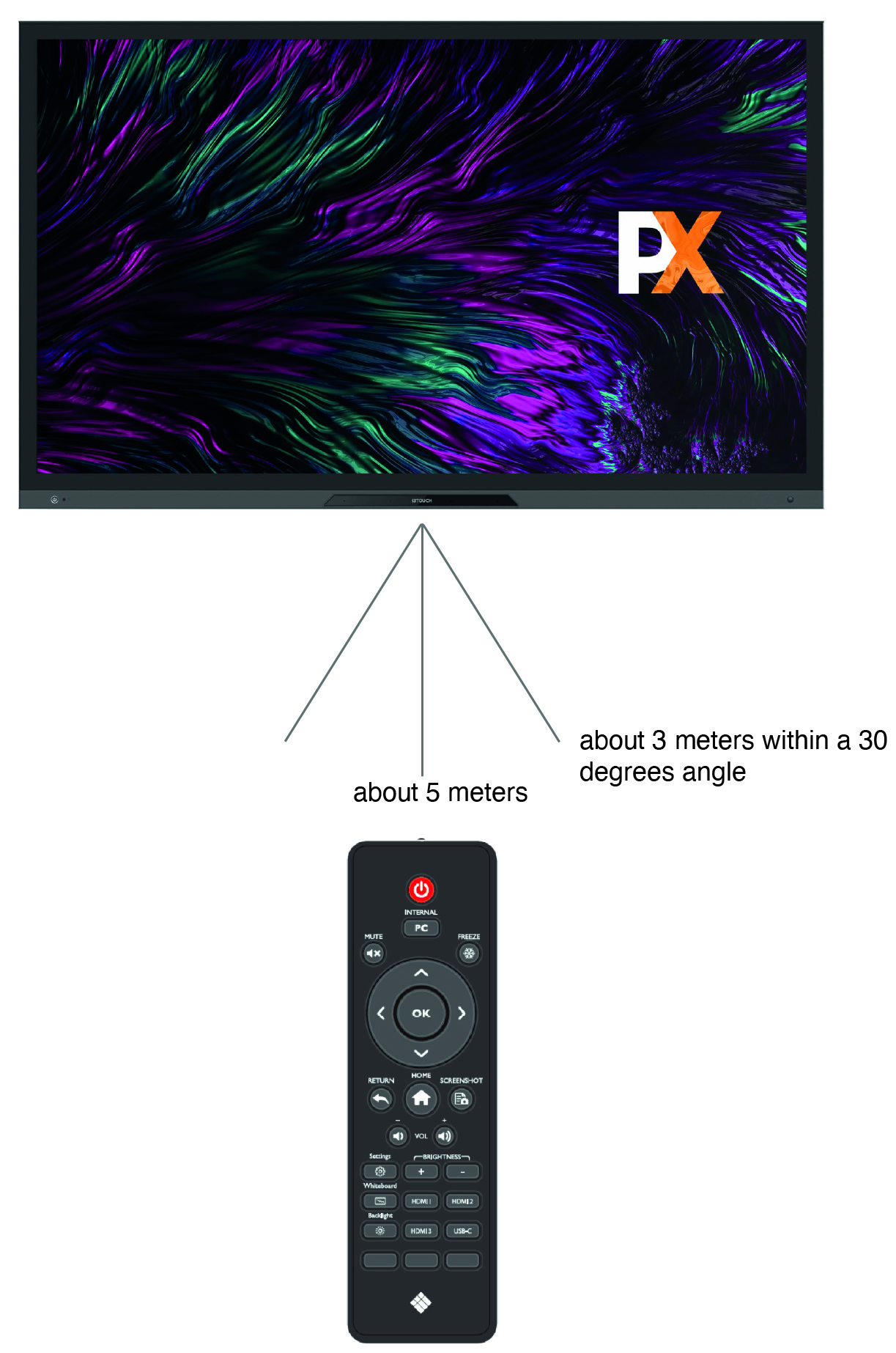

Range of Remote control.
Use the remote control within a range of about 5 meters in front of the remote control receiver of this
product and about 30 degrees on both sides.
Installation Guide
Safety Precautions.

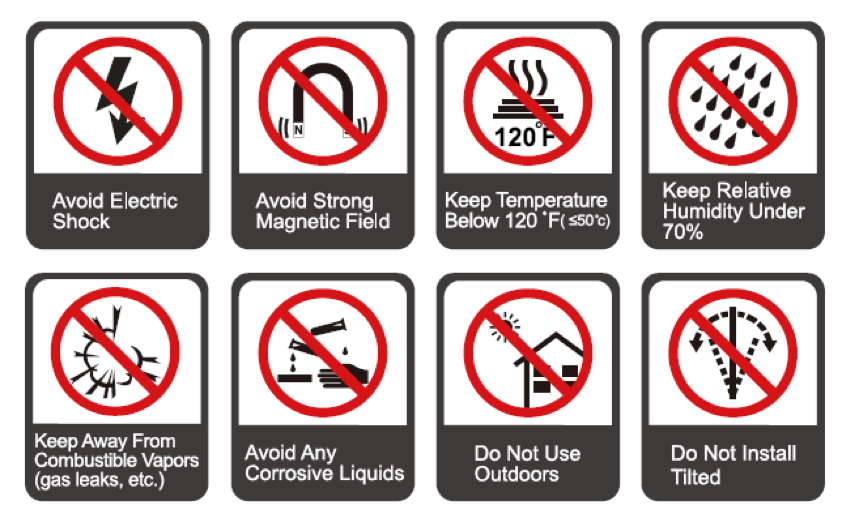

Installation Environment
Installation Direction
Installation Precautions.
Weight Loading
When using a mobile stand, ensure that the weight of the product is less than the loading capacity of the mobile stand.
When using the wall-mount bracket, ensure that the wall can support the weight of the product. We recommend that the wall surface be reinforced and have a loading capacity 4 times of the weight of the product. Consult a professional installer for wall-mount installation.
The company does not undertake relevant legal responsibility for any problems caused by improper operation if the third party mobile stand, or wall-mount bracket is beyond the scope of the product.
Do not install the product where it might be hit by an opening or closing door.

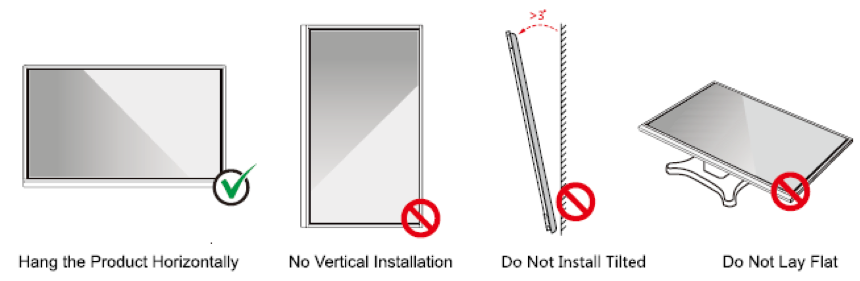

Vertical Installation

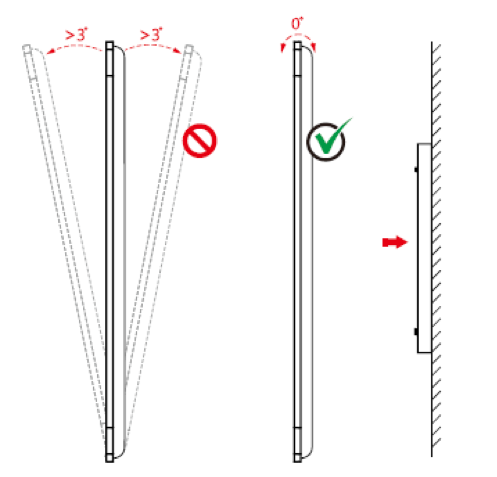

When installing, try to keep the product vertical. An excessive tilt angle may cause the screen glass to fall off or the product to collapse.
In case of broken glass, all personnel must stand 3 meters away from the product to ensure safety.
Do not install or disassemble the product if the glass is broken.
For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions.
Ventilation

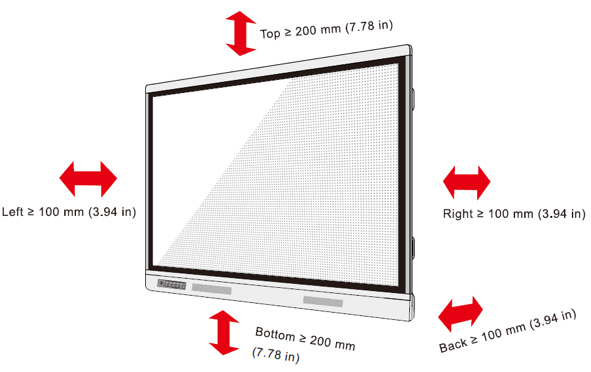

Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure:
* Refer to CAS 132-2006 standard
Installing the Built-in OPS Computer (Optional).
The built-in computer does not support hot plugging. Therefore, you must insert or remove the built-in computer when the display is powered off. Otherwise, the display or built-in computer may be damaged.
The built-in computer is not configured by default. You will need to purchase the built-in computer separately. Perform the following steps to install the built-in computer.
Step 1
Unscrew the screws by hand to remove the built-in computer shielding cover.
This step is optional and applies to models with shielding cover.
Step 2
Push the built-in computer into the port at the rear of the machine from right to left.
Step 3
Secure the built-in computer to the machine by using the screws.
If the screen fuzzes, flashes or if no signal is received from the built-in computer channel after turning on the power, it means that the built-in computer has not been properly installed. Please check it and re-install.
Turning On/Off
Power On.
Step 1

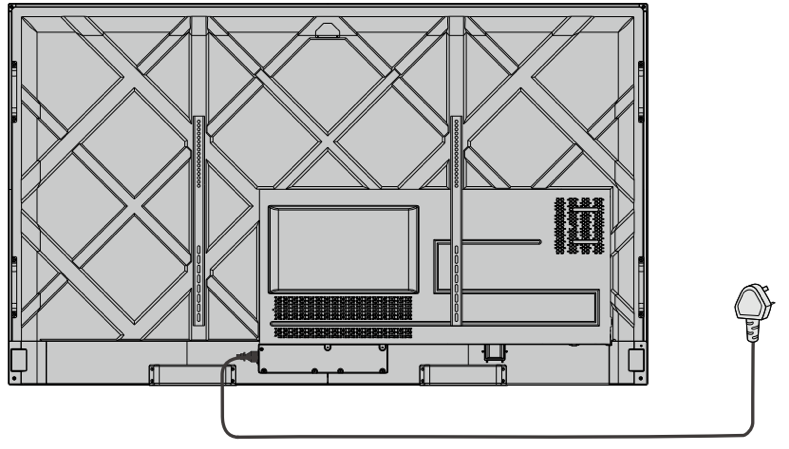

Use AC power (100V~240V, 50Hz/60Hz) as the machine power source. Make sure the power plug fully
inserted and that the ground wire of the outlet is properly connected.
Step 2

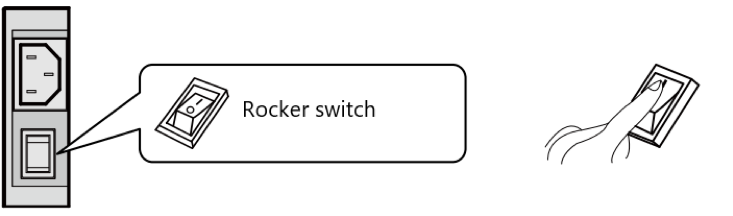

Turn on the rocker switch (on the rear side of the machine, next to the power socket) after a power source has been connected. The power indicator should be red.inserted and that the ground wire of the outlet is properly connected.
Step 3
Press the Power button on the display or the power button on the remote control to start the machine.
The indicator light turns green.
Power Off.
Step 1
Press the Power button on the remote control or long press the Power button to turn the machine power off. The indicator light turns red.
Step 2
If you want to completely turn off the machine, turn off the rocker switch on the rear of the machine (next to the power socket) and unplug the power cord.
When the machine enters sleep mode or is turned off, the system will first detect whether the built-in computer is turned off. If not, it first turns off the computer and then enters the sleep mode or shutdown.
Please shut down the machine before disconnecting the power source, or it may damage the machine. Accidental power failure may damage to the machine.
Do not repeatedly turn the power on & off in a short period of time as it may cause malfunction.
Indicator Status.
Indicator | Machine Status |
Off | Shut down or power disconnected |
Red | Shut down |
Green | Normal working state |
When the machine is turned on, short press the power button to enter sleep mode; short press the power button again, or press any button on the remote control or tap the screen twice to wake up the screen.
When the machine is turned on, hold the screen for more than 3 seconds with 3 fingers to turn screen off; short press the power button, or press any button on the remote control or tap the screen to turn screen on.
Home Interface
All our i3TOUCH devices are available with a BIZ or EDU Studio, bringing ease of use and simplicity to your desired workspace. You can choose which studio you want to use at first boot or through the settings menu.
BIZ STUDIO
The BIZ studio equips the display with a stylish background and extends the user interface with an extra configurable button.
You can customize the link and label of this button through the settings menu or in the startup wizard at first boot.
EDU STUDIO
The EDU studio equips the display with a colorful, fun background and extends the user interface with an extra button for i3LEARNHUB.
Start whiteboarding.
The whiteboard button opens an interactive whiteboard that allows you to take notes, make drawings or facilitate workshops. The output can be shared very easily with all participants.
Tap the whiteboard button.
Start writing in the active tab.
Activate the writing options by tapping the eraser.
Start presenting.
Content from other devices can be streamed to the display with a push-of-a-button.
Tap the present button.

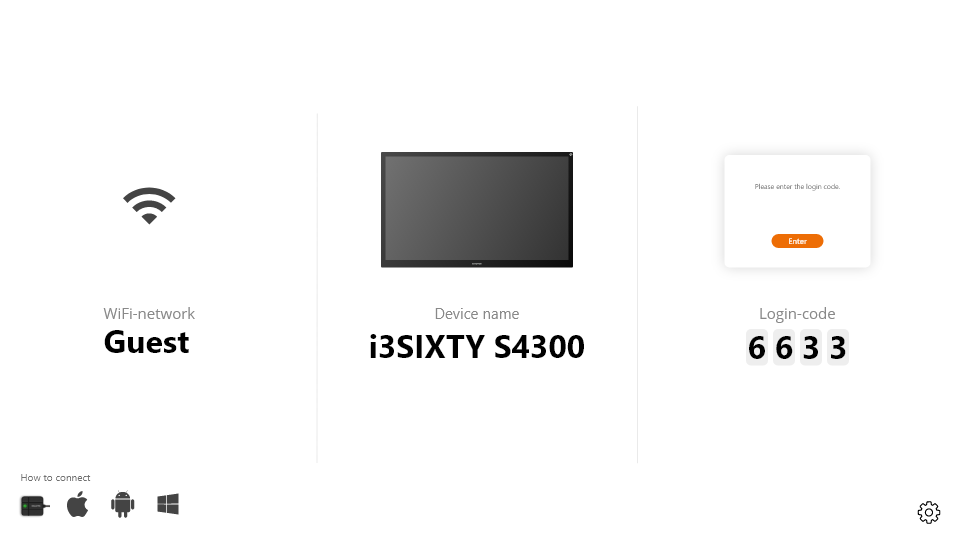

Choose your platform of choice.
Follow the setup guide on screen.
Hamburger menu.
Use your favourite applications during meetings. Press the hamburger icon on the left or right side of the display to open the menu.
Clicking the hamburger button will make the menu appear with a number of options:
Exit the menu and navigate back.
Navigate to the homescreen.
Start the Whiteboard application.
Start the Present application.
Work with Annotate and make annotations on everything that appears on the screen.
Switch between the input sources of the display.
Adjust volume of the loudspeakers.
Video input source.
The following options are visible when a video signal is connected.
Clicking the video input button will make the menu appear with a number of options:
Switch to the Android video source
Switch to the USB-C video input source
Switch to the HDMI video input source
Switch to the VGA video input source
Other applications.
At the bottom of the screen, in the middle, there are a few buttons to access other applications.
Open the browser app
Open the file explorer app
Open the WPS offices app
Open more apps
The settings menu.
In the bottom right corner, you can find the button to access the settings menu.

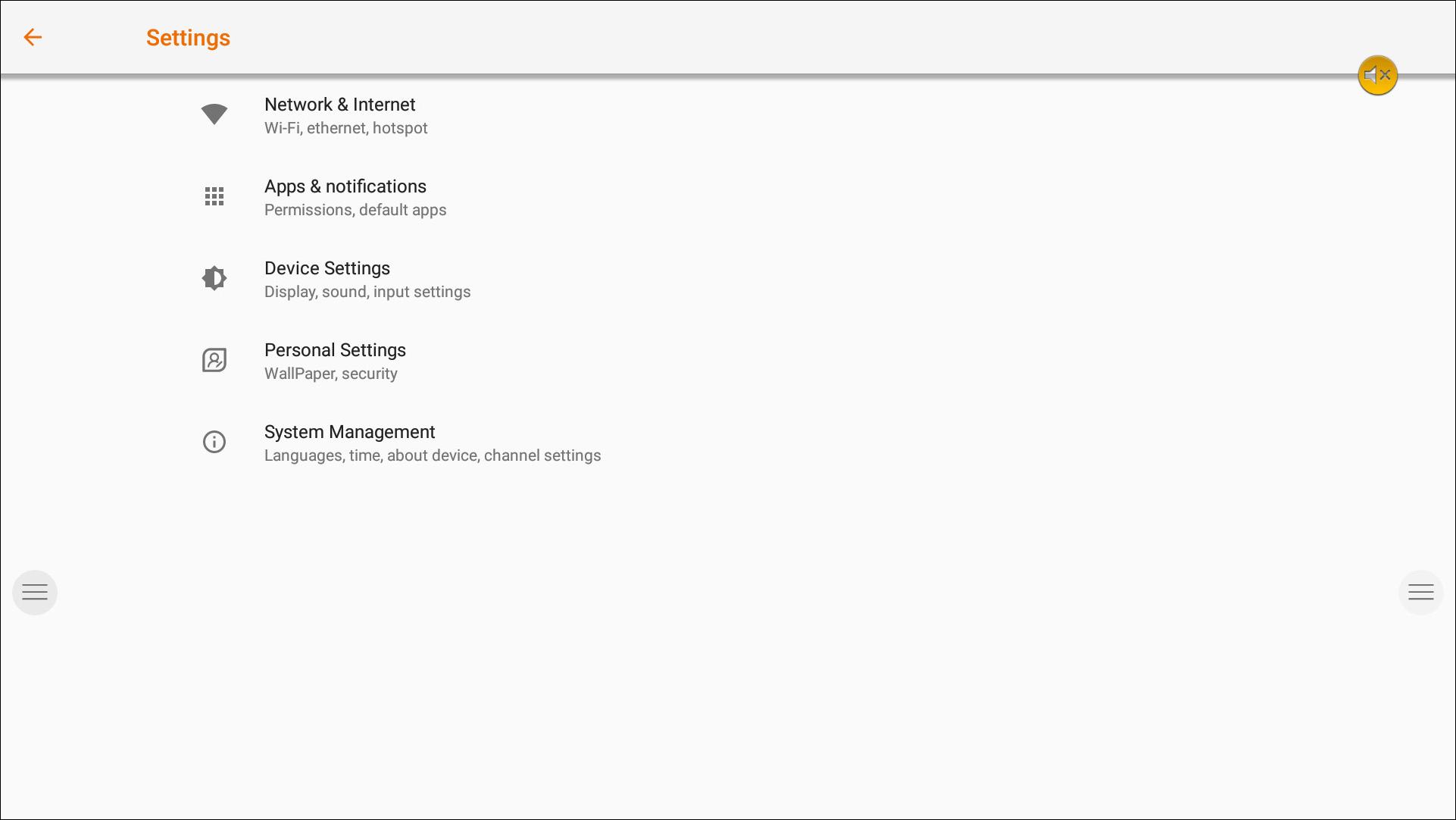

Settings
When opening the settings menu, you get an overview of all the settings you can adjust.
Network & Internet Settings.

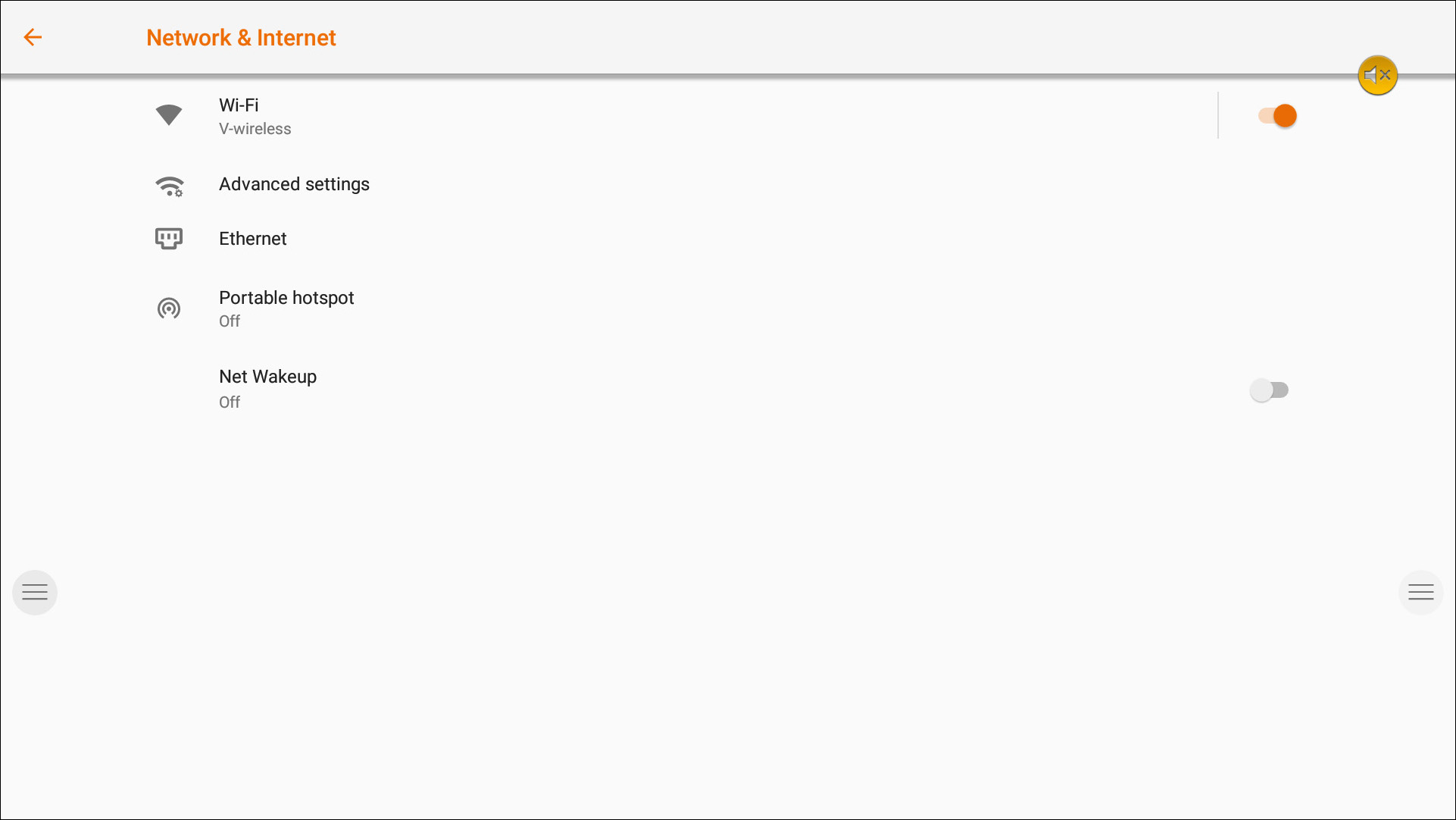

Make a connection to your network and internet via Wi-Fi or Ethernet cable.
System Firmware Update.
After connecting to the internet, verify that your display is running the latest firmware.

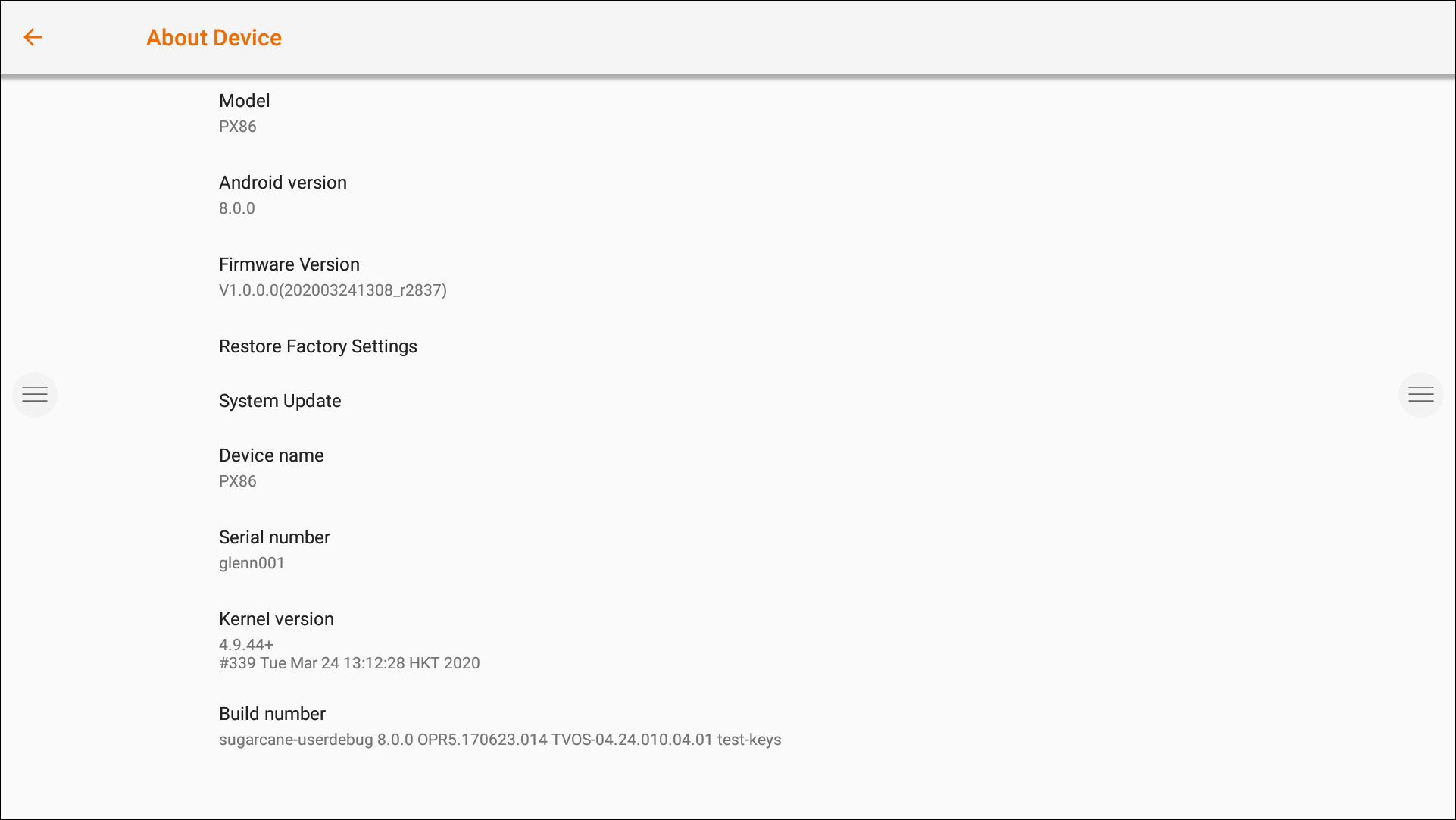

In the settings application, press System Management, and About Device. Press the System Update
button to validate your firmware version online (OTA). If a newer system version is available, this button will provide instructions to update your device.
Display Settings.
Control the brightness of the i3TOUCH display in the Display settings menu.
The i3TOUCH PX also features an environment light sensor to automatically adjust the brightness. Turn Automatic Brightness Control on to activate this feature.
Audio Settings.

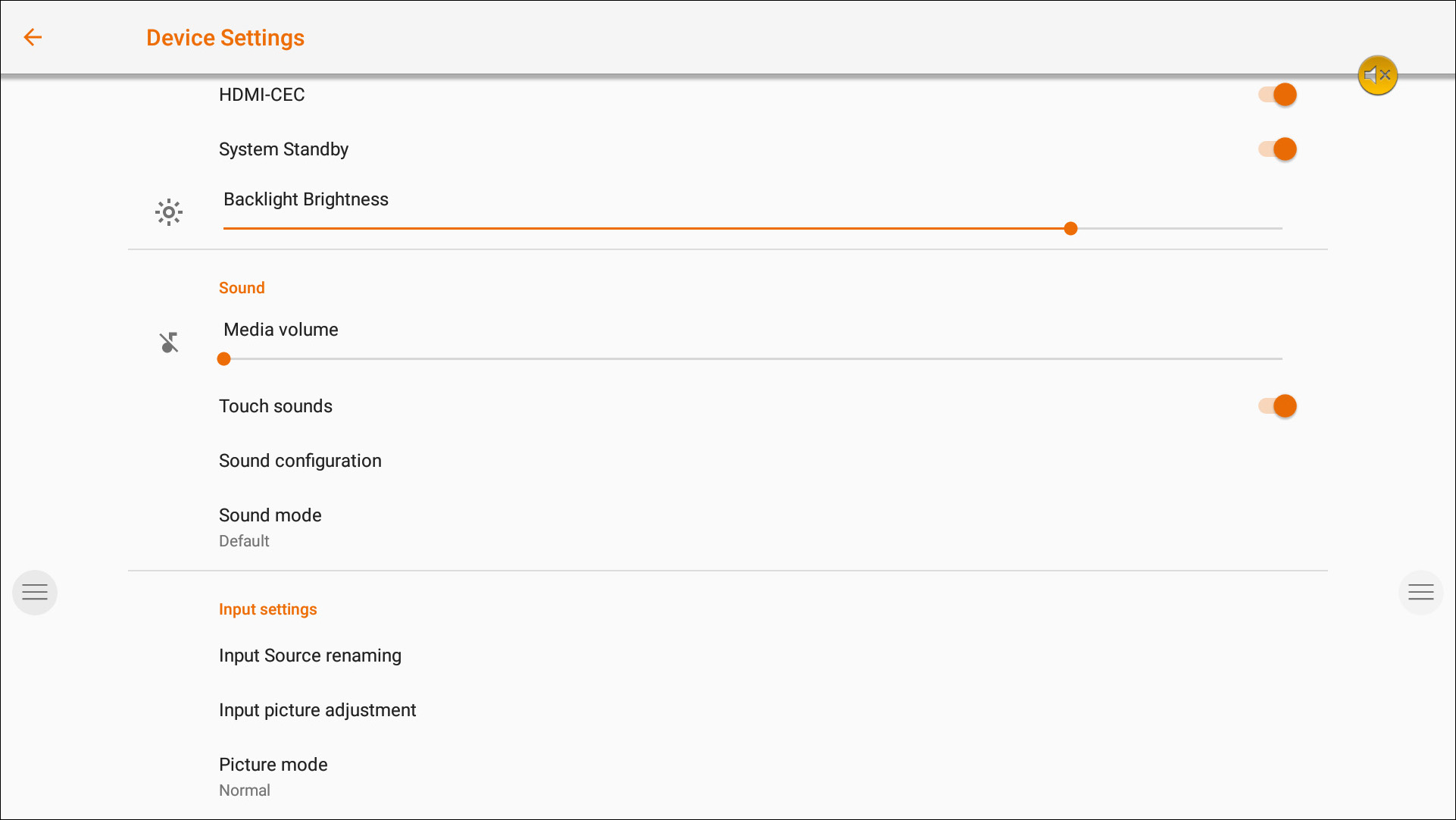

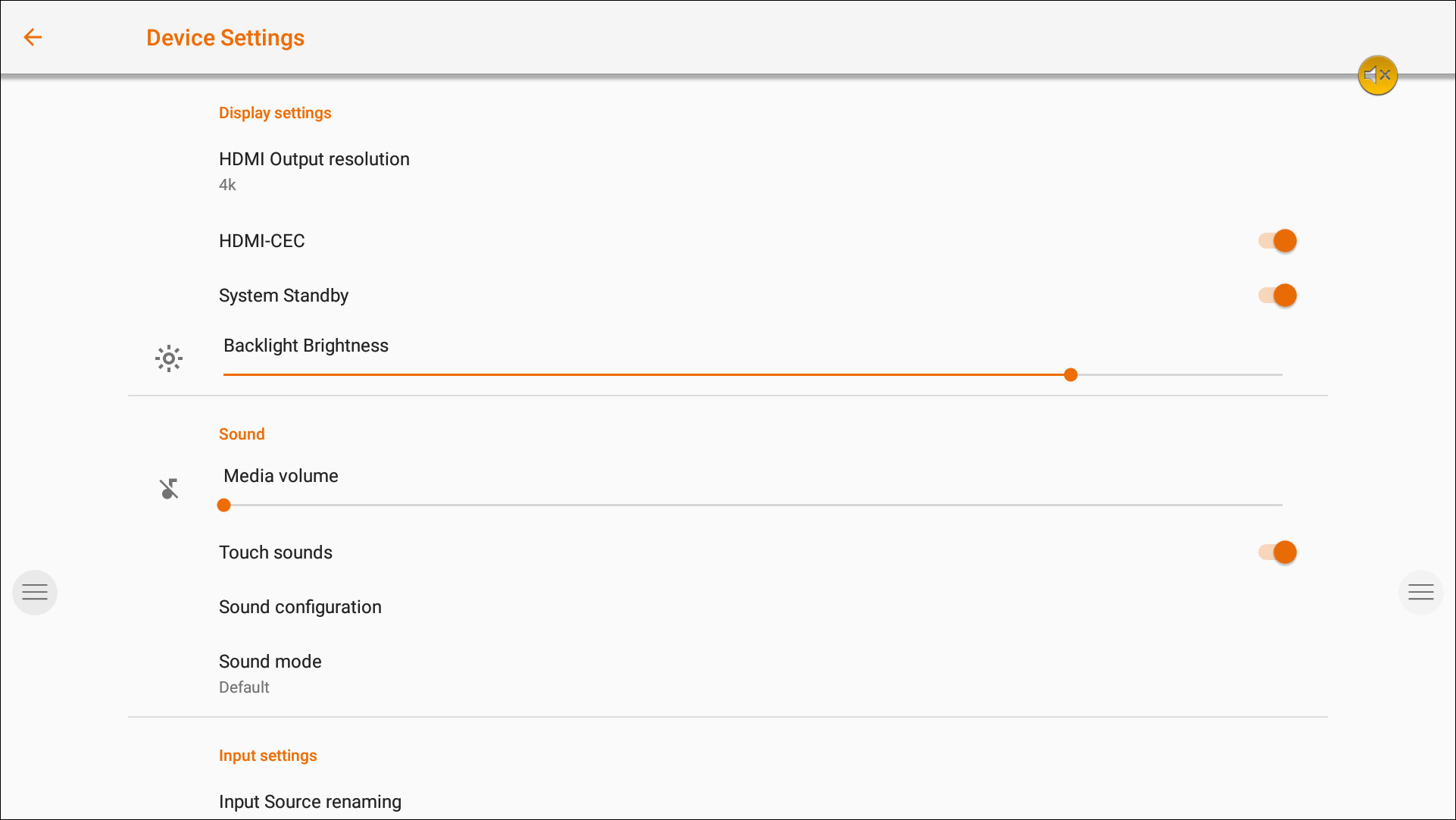

Adjust the audio settings in Device Settings and pre-define the audio environments.

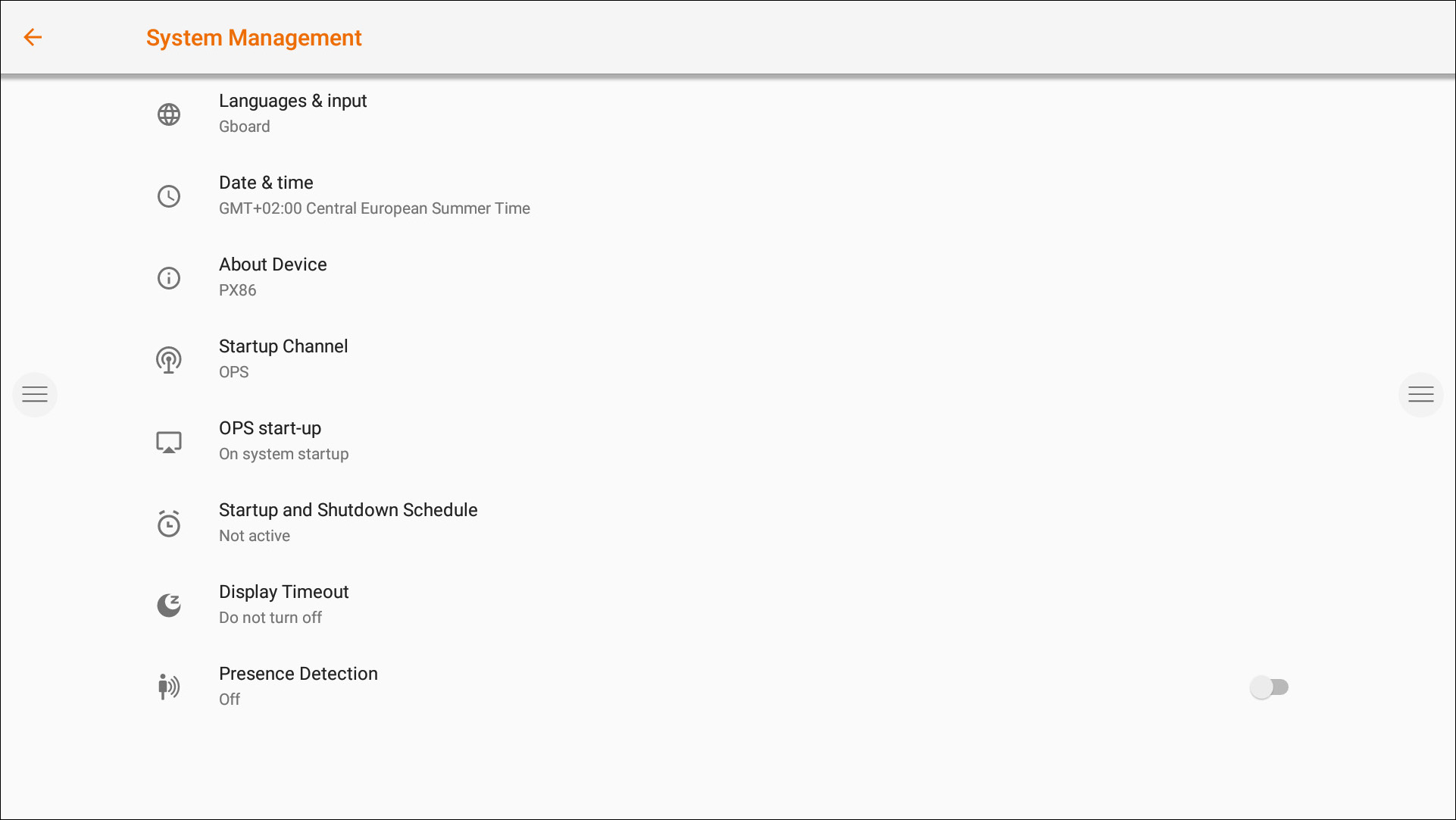

System Management.
Startup and Shutdown Options
Define the active video channel after startup:
Define when the OPS Built-in computer should startup (if installed):
A. Only after switching to the video channel input.
B. Startup together with display.

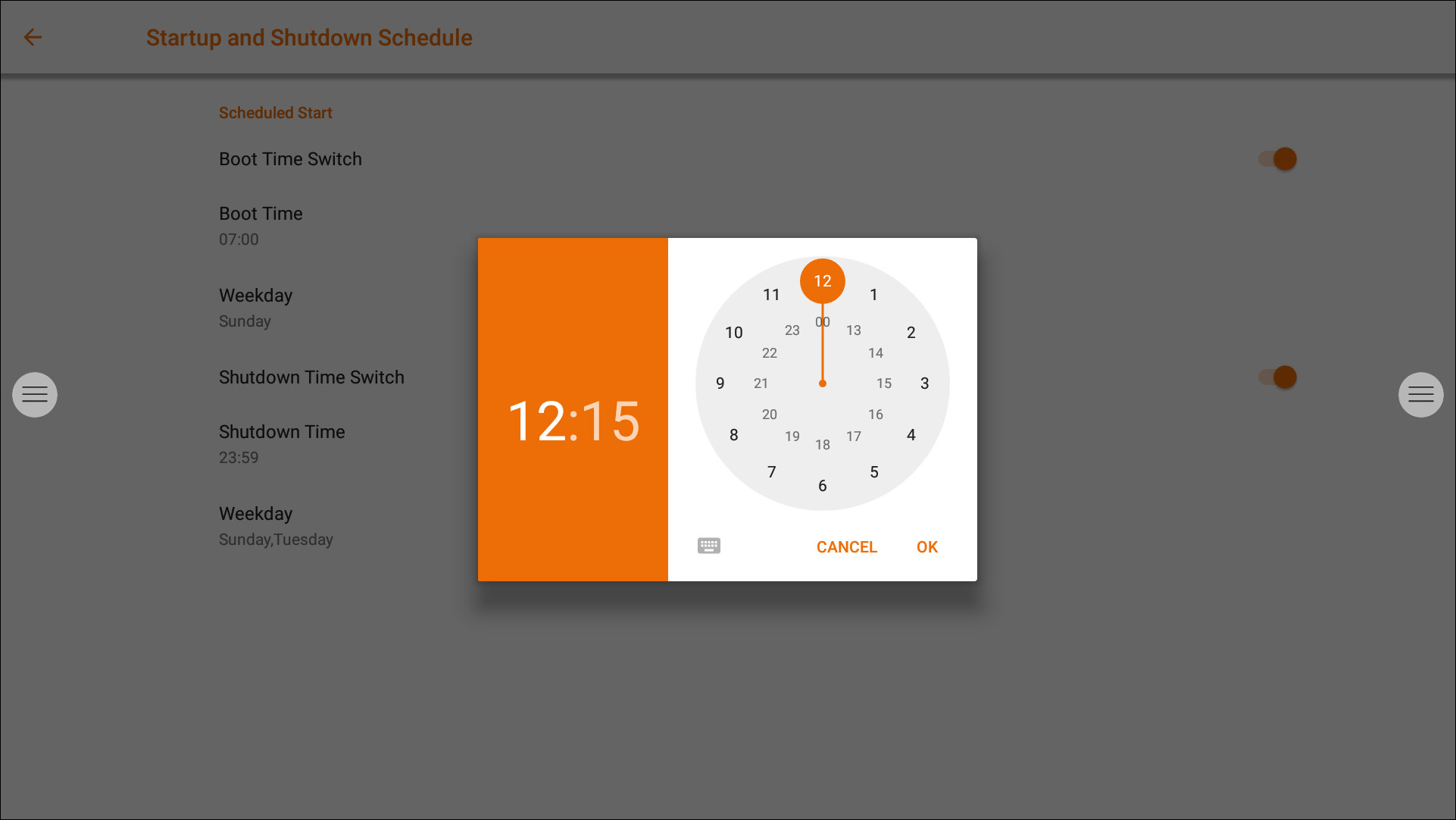

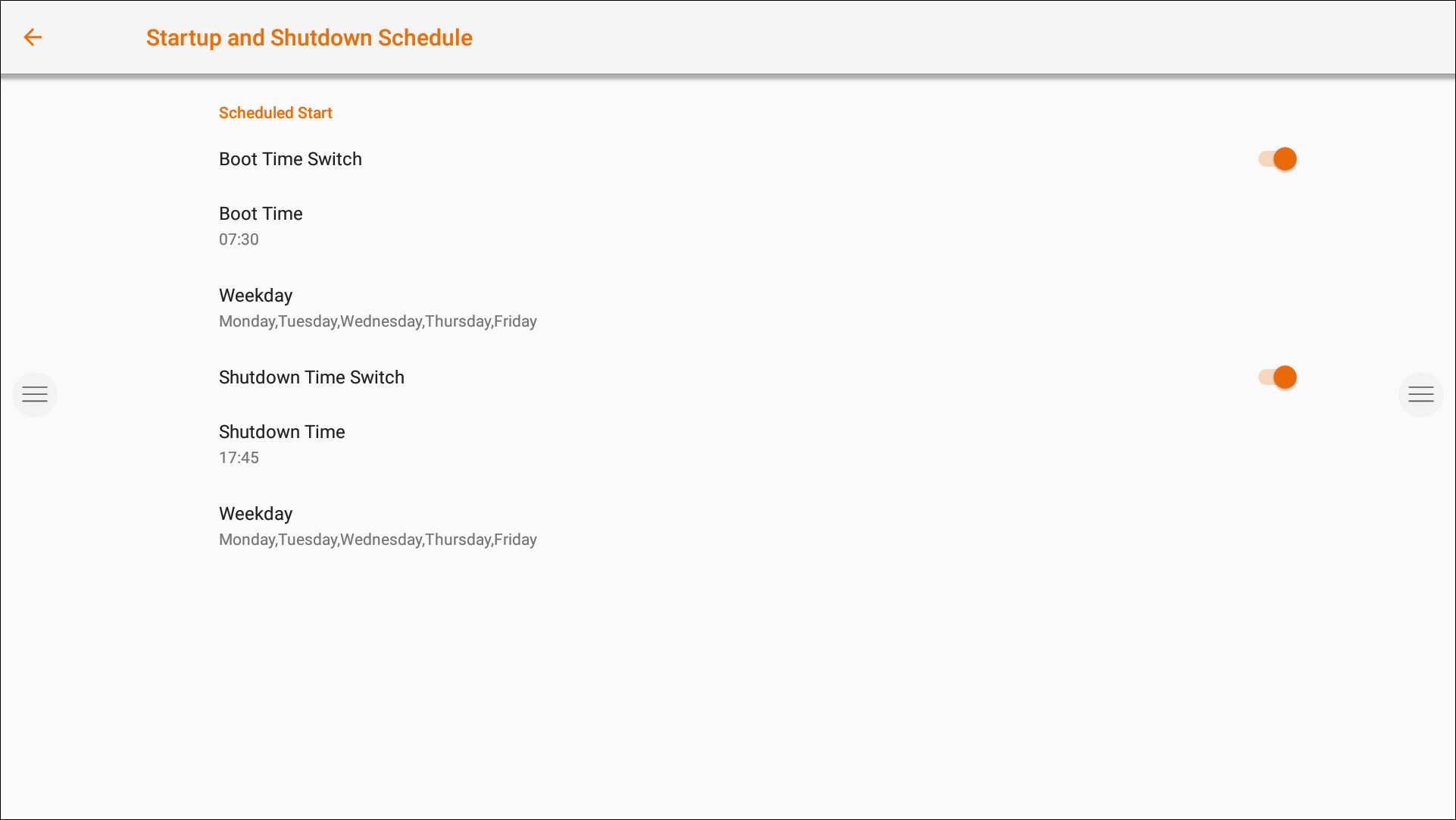

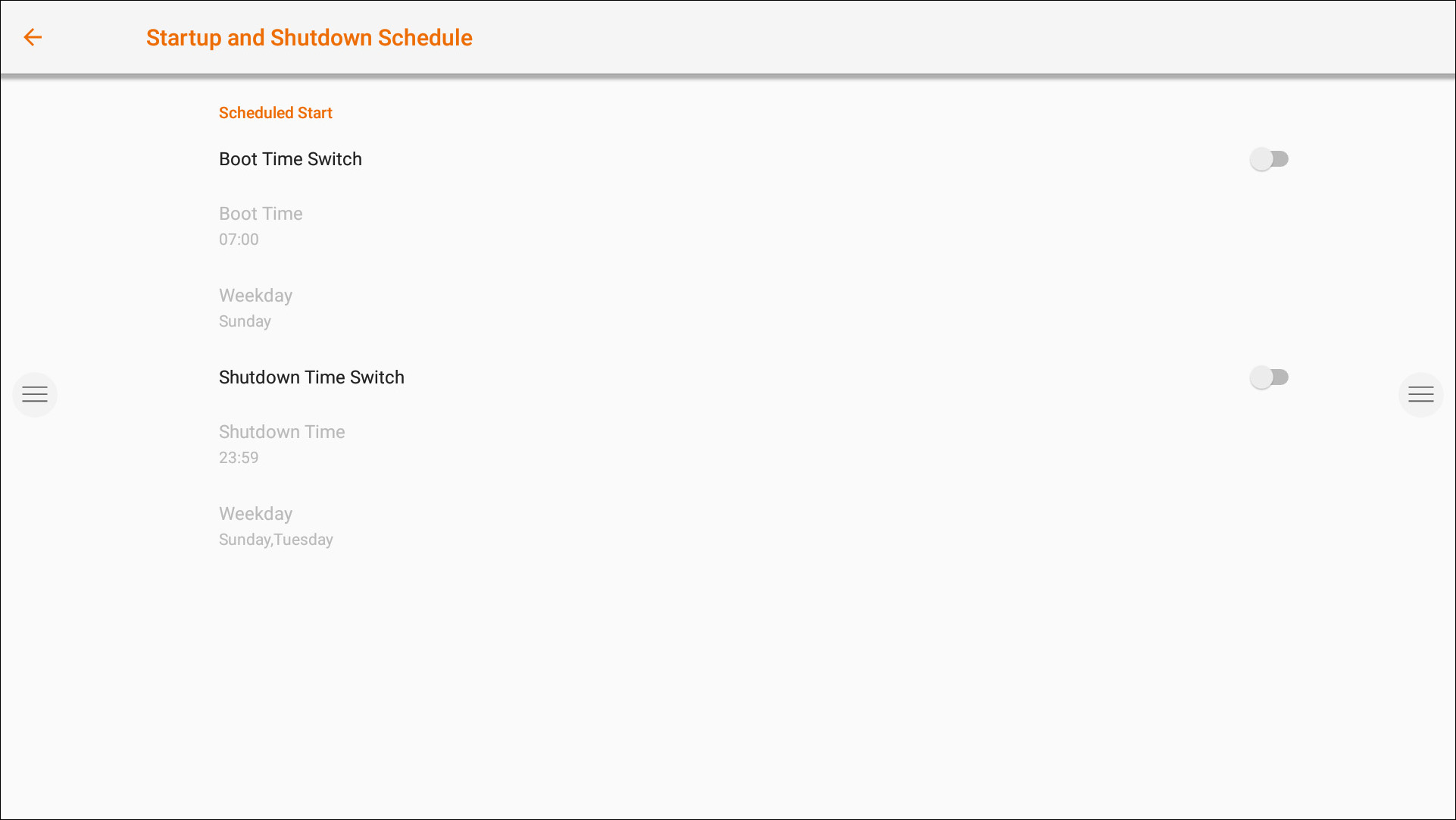

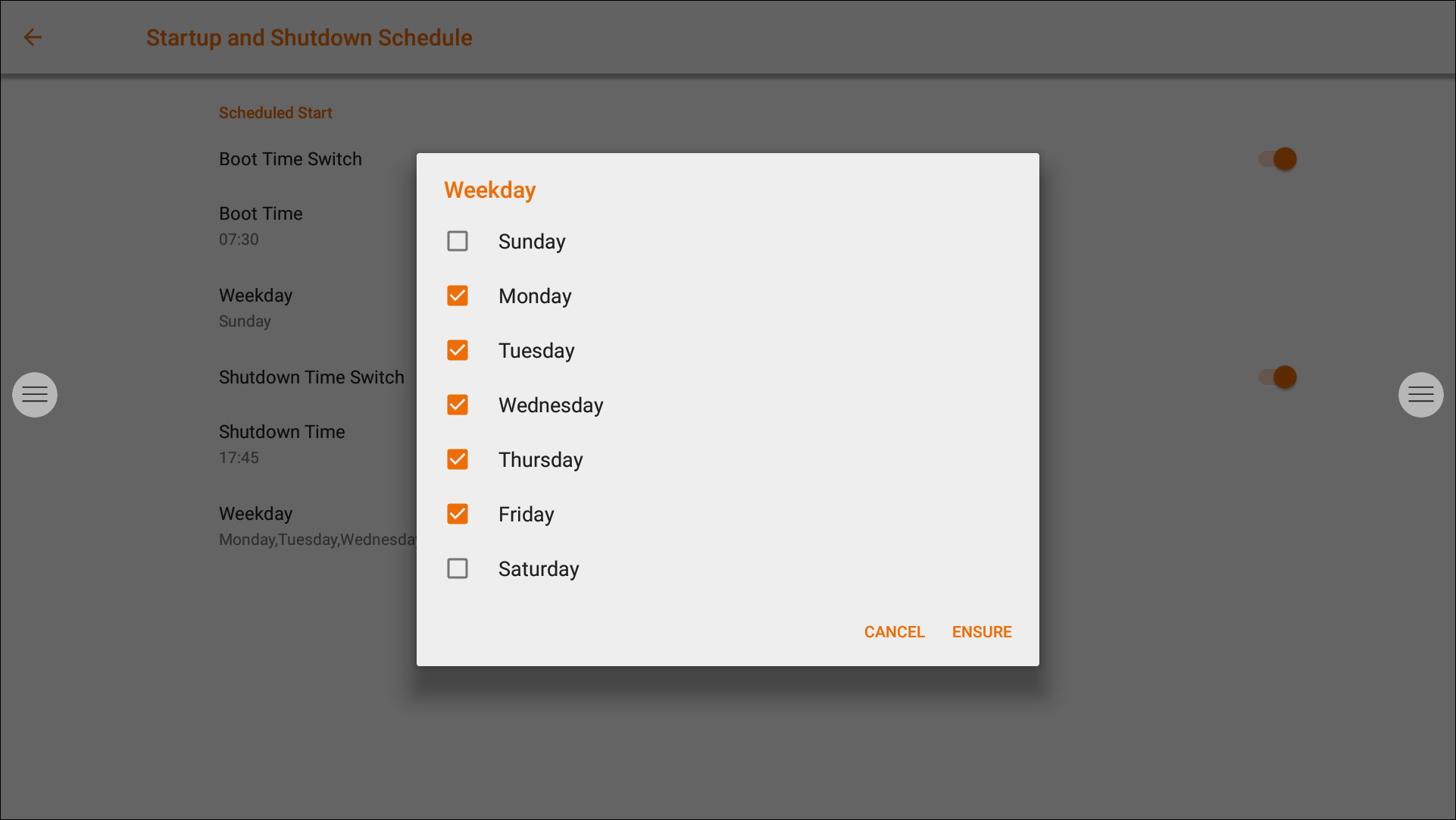

Schedule an automatically startup and shutdown schedule.
Set the inactivity timer of the display. Turn the display off if there is no video signal for a defined time.
Enable / Disable the Motion Sensor. If the motion sensor does not detect presence/movement in the room for 15 minutes, the display will automatically shut down.
Whiteboard
There is also a tutorial video available on our YouTube channel:
Initial calibration.
Upon first start-up of the whiteboarding application, you will be asked to calibrate the four-finger erase gesture. Follow the instructions on screen to calibrate and activate this quick-erase gesture.
Floating tools menu.
Clicking on the floating tools menu will activate it and show 7 options.
 | Close i3NOTES, this will also delete all notes |
 | Save/Export |
 | Marker, you can write with semi-transparant ink |
 | Pen tool, change the writing color |
 | Pencil tool, change the drawing color |
 | Eraser, erase parts of the canvas |
 | Delete, delete content of current page |
Marker, Pen, Pencil & Eraser
By selecting one of the canvas tools (marker, pen, pencil or eraser) it will open a second level of options. Each tool has its own options, so changing width or color on one tool will not change it for another.
The slider is used to select the tool line thickness, the number at the top indicates the selected thickness ranging from 1 to 10. The 5 colored circles are pre-defined options to quickly change marker or pen colors.
The plus icon ("+") can be used to select a custom color for that tool. After selecting a custom color, the plus icon will be replaced by the selected color. In order to change this again, long press on the custom color circle and the color selection window will show up again.
The tip of the active pen will work in the same way as the pen tool. If you want to change the color and thickness, you should do this through the pen tool icon.
When you write while pressing the button, the pen will function as an eraser.
Close
This will close the whiteboard application and deletes all pages permanently. There is no option to retrieve deleted content. You will be asked if you want to save/export your notes first, before closing.
Save / export
The whiteboard application supports multiple save and export options (adjustable in admin settings).
Email as PDF
You can email the content of the whiteboard to yourself and/or others using one of the 3 available mail options.
Use i3NOTES
This option will use the i3-Technologies mail service. Enter the email address to whom you want to send the PDF to. You can enter multiple email addressess separated by a space (" ").
Use Microsoft Exchange
This option uses your Outlook account to send the mail. You will need to login first so that the whiteboard application will receive permission to use your account to send the mail. After successfully logging in and giving the required permissions you can select to stay logged into your Microsoft Exchange account on this device. By default it will not remember and after sending the mail your login credentials will be deleted from the system.
Enter the email address that you want to send the PDF to, you can enter multiple email addresses separated by a space (" "). There are also 2 other options:
Get meetings: This will get all your calendar events from today. On selecting one it will add all email addresses of that event and add them to the mailing list.
Get contacts: Will fetch your contacts from Microsoft Exchange.
A Microsoft Exchange account is a work or school email account.
The organization that gave you the Exchange email account is running a Microsoft Exchange Server,
or is using Microsoft Office 365 which uses Exchange Server to provide email.
Use SMTP
With this option you can use your own SMTP mailing server to send the PDF. Enter the login credentials and SMTP server address to open a connection. If the default SMTP setting gives a connection error you will be given more advanced SMTP options to connect to your SMTP server.
The "Sender’s Email" will be pre-filled with the email address that you used to login on your SMTP server.
Some SMTP servers allow to send mail from a different email address. In the receiving email address field enter the email address that you want to send the PDF to, you can enter multiple email addresses separated by a space (" ").
Export to i3CLOUD
After logging in on your i3CAMPFIRE or i3LEARNHUB account, you can export the whiteboard into your personal library.
Direct download as PDF
With this option you can download your notes directly to your phone using a QR code. There are 2 options for this.
Use internal network
This option will make the direct download available only on the current network, in order to download the PDF both devices will have to be connected to the same local network. After closing the QR dialog the PDF will immediately be unavailable for download.
Required: your network firewall will need to allow peer-to-peer connections.
Use cloud
The cloud option will export the PDF to the i3-Technologies cloud server and make it publicly available to download for everyone that scans the QR code. After 2 hours the PDF will automatically be removed from our server.
Export to USB
This export option allows the user to save the PDF onto an external storage device. Only FAT32 storage devices are currently supported. The PDF will be saved in the root folder of the connected storage device.
Delete
The delete option will remove all contents of the current open page without deleting the page from your tab bar. After pressing OK your notes will be permanently removed.
Whiteboard bar
The tab bar is used to switch between different pages. Each page is numbered by an incremental id that defines the export order. The current visible page will be indicated by a darker colour.
Press the plus icon ("+") on the right side to add new pages.
Long press a page number in the tab bar to remove it. This will not only remove the contents of that page but also remove the page itself from the list and update the page numbers of the remaining pages.
This action is permanent.
Whiteboard canvas
This is the biggest part of the whiteboard. Here, you can write using the canvas tools.
Active stylus
The active stylus writes with black digital ink by default.
Finger writing / drawing
At start-up of the whiteboard application, touching the canvas with a finger (or fingers) will activate the eraser function on default. This allows for the quickest note-taking experience: open whiteboard, write with stylus, erase with finger.
Changing the drawing tool, or its thickness or color will modify the finger-touch behavior, until the whiteboard is closed and reopened again. The whiteboard canvas supports multi-touch writing.
Annotate
The annotate interface is very similar to the whiteboard interface. This consists of 2 main parts:
Floating Tools Menu
Annotation Canvas
Floating tools menu.
Clicking on the floating tools menu will activate it and show 6 options.
 | Close i3OVERLAY, this will also delete all notes |
 | Export to whiteboard |
 | Marker, you can write with semi-transparant ink |
 | Pen, normal writing behaviour |
 | Eraser, erase parts of the canvas |
 | Pointer, will hide notes and make the background interactive again |
Close annotation
This will close the annotate application and delete all notes permanently, there is no option to retrieve deleted content.
Export to whiteboard
This will make an image of your notes combined with the current background and send it to the whiteboard application. It will happen in the background, so you can continue working in the annotate application and once you return to the whiteboard application all your screenshots will be available in separate pages.
There are 2 export options:
Fullscreen Screenshot
This will take a screenshot off the entire visible screen and export it to the whiteboard application.
Crop Screenshot
This option will provide the user with a cropping view. The user can position and resize the rectangle exactly to the area he wants to screenshot. At the bottom there will be 2 buttons, to cancel the cropping and to submit and send it to the whiteboard application.
Marker, Pen & Eraser
By selecting one of the canvas tools (marker, pen or eraser) it will open a second level of options. Each tool has its own options, so changing thickness or colour of one tool will not change it for another. The slider is used for selecting the tool writing thickness, the number at the top indicates the selected width ranging from 1-10. The 5 coloured circles are preselect options to quickly change marker or pen colour, the eraser will not have this option.
Eraser
The eraser also has an other option in the second level of the floating tools menu. The delete option will permanently remove all notes from the current canvas.
Pointer
The pointer option enables the user to interact with the device without needing to close the annotate application. This will hide the current notes but they will not be deleted, they will be temporally saved in the background.
Annotation canvas
This is the biggest part of the whiteboard. Here, you can write using the canvas tools.
Active stylus
The active stylus writes with black digital ink by default.
Finger writing / drawing
At start-up of the annotate application, touching the canvas with a finger will activate the eraser function on default. This allows for the quickest note-taking experience: write with stylus, erase with finger.
Browsing
For browsing the web, the i3TOUCH provides the Google Chrome application.
Usage instructions for the Google Chrome browser can be found at https://support.google.com/chrome.
Present
Meeting attendees often bring their own devices to the meeting room. Laptops, smartphones, tablets, etc.
The i3TOUCH display provides multiple tools for streaming to and from other devices.
The i3TOUCH display provides the i3ALLSYNC Wireless Presenting application to quickly and easily stream the screen content of any mobile device to the display.
Download transmitting client software...
i3ALLSYNC is our client software, available for most operating systems and devices, and can be downloaded from https://i3-allsync.com. The software is available for Windows OS, MacOS, and Android OS. iOS and MacOS can also use their integrated AirPlay function to connect with i3ALLSYNC without any software.
... and connect to the i3TOUCH with i3ALLSYNC transmitter software
Open the transmitting client i3ALLSYNC application on your device, and follow the instruction on-screen to insert the i3TOUCH credentials and cast your screen content.
i3ALLSYNC Menu and Settings

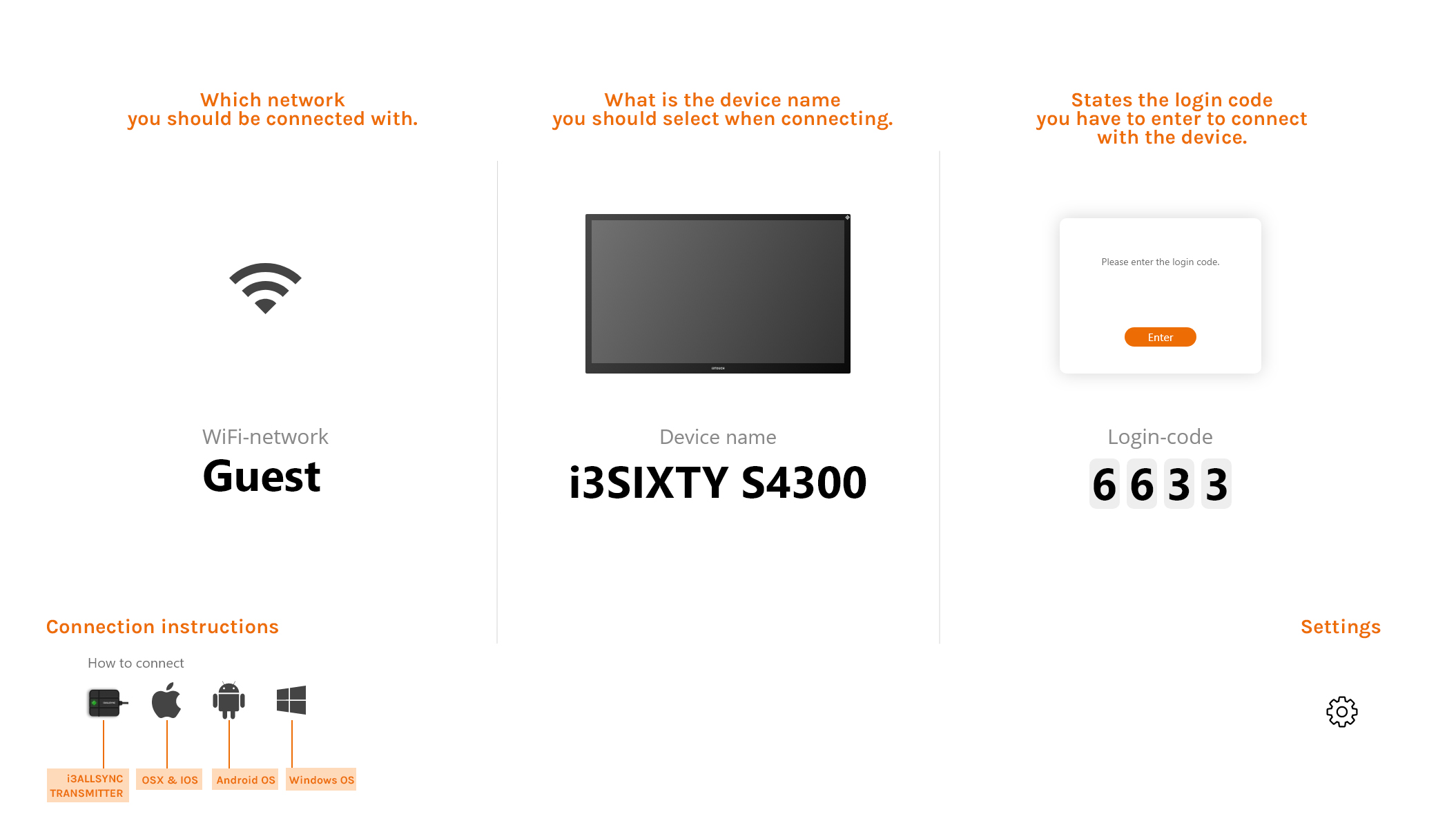

When opening the present feature, this is the interface you will see.
Once you’ve set up your connection the i3TOUCH display will show a widget at the bottom of the screen containing several settings
Stop video stream
Press this button to stop the shared content from all connections.
Start annotating
Press this button to start the annotating function of the i3TOUCH. (This button behaves exactly as the Annotate button in the hamburger menu).
List all connections
Available only in the CLOSED Meeting Mode. Press this button to display a list with previews of the connected users that are standby to share their screen content. Press the play button on the preview to display the screen content.
Enable / disable touch
Allow or deny the touch input on the screen of the i3TOUCH to control the connected computer.
NOTE: Touch functionality only works via the i3ALLSYNC Transmitting clients on Windows and MacOS.
Use the i3ALLSYNC HDMI transmitter (optional accessory)
i3-Technologies also offers the i3ALLSYNC HDMI Transmitter (purchased separately) for meeting attendees (guests) that can’t or won’t install the client software. Once the i3ALLSYNC HDMI Transmitter is paired only once with the display, you only need to plug in the HDMI and USB cable and press the button to immediately share the HDMI content on-screen.
Connect to i3TOUCH with i3ALLSYNC HDMI transmitter (device not included)

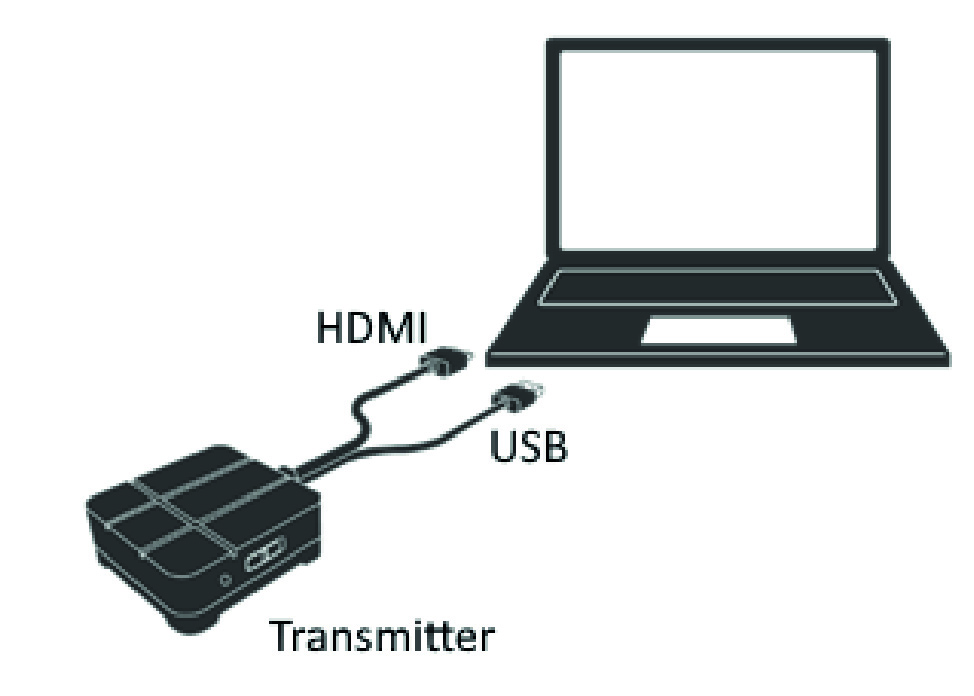

If using the i3ALLSYNC HDMI Transmitter device, just connect and screensharing will start with the press of a button. The i3ALLSYNC interface provides useful instructions for each operating system to start the presentation.
Quick Troubleshooting
Device fails to work normally | |
Remote control failure | Check whether there are other objects between remote control and equipment control receiving window, thus leading to failure of remote control. |
Check whether the battery electrode in the remote control is correct. | |
Check whether the batteries of the remote-control needs to be replaced. | |
Machine has automatically shut down
| Verify sleep settings in the settings app. |
Check whether there is sudden power outage. | |
The system will automatically shut down if the interactive external video channel has no signal for 5 minutes. Please check the input and connection of the video signal and/or modify sleep settings of the external device. | |
PC mode | |
Image lack of color, color is incorrect | Check whether the VGA connector is well connected or has broken pins. |
Verify the correct operation of the VGA cable. (replace) | |
Touch operation | |
Touch function is not working | Verify that the USB cable is properly connected to the computer. And that the length of the USB cable does not exceed 5 meter without USB amplifier / hub. |
Verify that the computer hardware and operating system supports touch screen operation. (Windows 7 or earlier does not support HID touch screens). (Some MacBooks do not support HID touch screens). (Older Linux kernels do not support HID touch screens). | |
Video signal problems | |
No picture and no sound | Check whether the machine has started. |
Check whether signal wire is well plugged, whether INPUT is corresponding to it. | |
If in internal computer mode, check whether internal computer is started. | |
With horizontal or vertical stripes or image dithering | Check whether signal wire is well connected. |
Check whether other electronic equipment or power tools are placed around the machine. | |
No color, color is weak, or image is weak | Adjust chromatic and brightness or contrast in menu. |
Check whether signal wire is well connected. | |
Audio problems | |
Image but no sound | Check whether mute button is pressed for mute. |
Press VOL + / - to adjust volume. | |
Check whether audio line is connected correctly. | |
Only one speaker has sound | Adjust sound balance in menu. |
Check whether computer sound control panel only sets up one sound channel. | |
Check whether audio line is connected correctly. | |
HDMI output without sound | Check whether the external device is connected correctly. |
Maintenance
Proper maintenance can avoid many early faults and regular careful cleaning can make machine brand new. Please unplug power plug before cleaning and maintenance, to prevent electric shock.
Clean screen
Please mix and stir even a little fabric softener or tableware detergent with alcohol.
Please use a soft cloth to be completely soaked in the mixture.
Please take out cloth and twist to half dry state to wipe machine screen.
Repeat for several times, pay attention not to squeeze water flow into machine when wiping machine.
Clean face frame
Please use dry, soft, lint-free cloth to wipe front frame.
No use of machine for a long time
In case of no use of machine for a long time, such as holiday, please make sure to unplug the plug to prevent any possible dangers caused by power supply ripple from lightning.
NOTE: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
