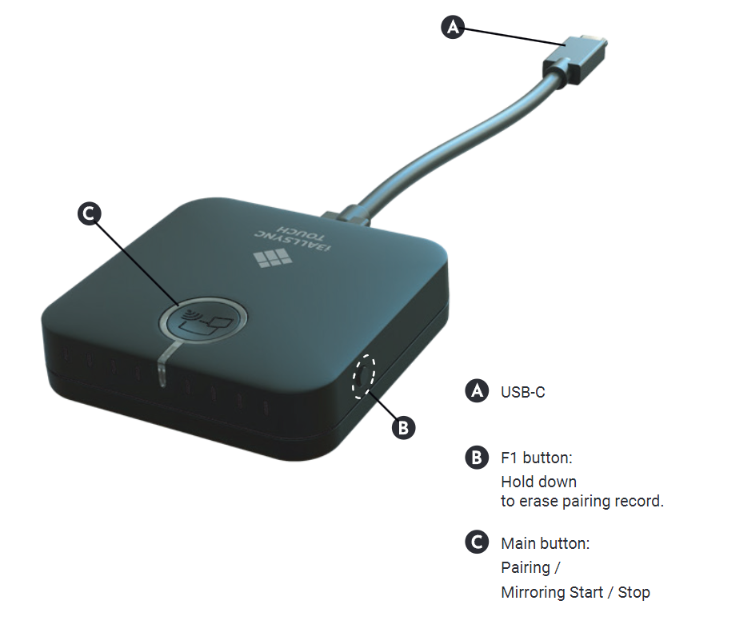

TX46-C USB-C transmitter:
-
Buttons
-
LED
|
LED |
Behavior |
Definitions |
|---|---|---|
|
Green |
Lights up constantly |
TX46-C finds Receiver successfully. |
|
Blinks |
TX46-C connects to router successfully but can't find Receiver. |
|
|
Blue
|
Lights up constantly |
TX46-C is presenting (You can see the mirroring on the i3TOUCH.) |
|
Blinks 3 times and return to green light |
Receiver enabled Moderator mode, so TX46-C cannot present proactively. |
|
|
Yellow |
Lights up constantly |
TX46-C is booting up. |
|
Blinks |
TX46-C is connecting to Receiver, but TX46-C detects no USB-in signal. |
|
|
Purple |
Blinks constantly |
TX46-C is processing firmware update. (Note. Do not remove the power during firmware update.) |
|
Blinks 5 times |
TX46-C is deleting the pairing record. |
|
|
White |
Blinks |
TX46-C is under pairing process. |
|
Red |
Blinks 1 time and stops 3 seconds (loop) |
TX46-C has no Receiver pairing data (Normally happens when first use or the pairing record has been deleted.) |
|
Blinks 3 time and stops 3 seconds (loop) |
TX46-C cannot find the designated network SSID. |
|
|
Blinks 5 time and stops 3 seconds (loop) |
TX46-C is able to find the designated network SSID, but the stored password is wrong. |

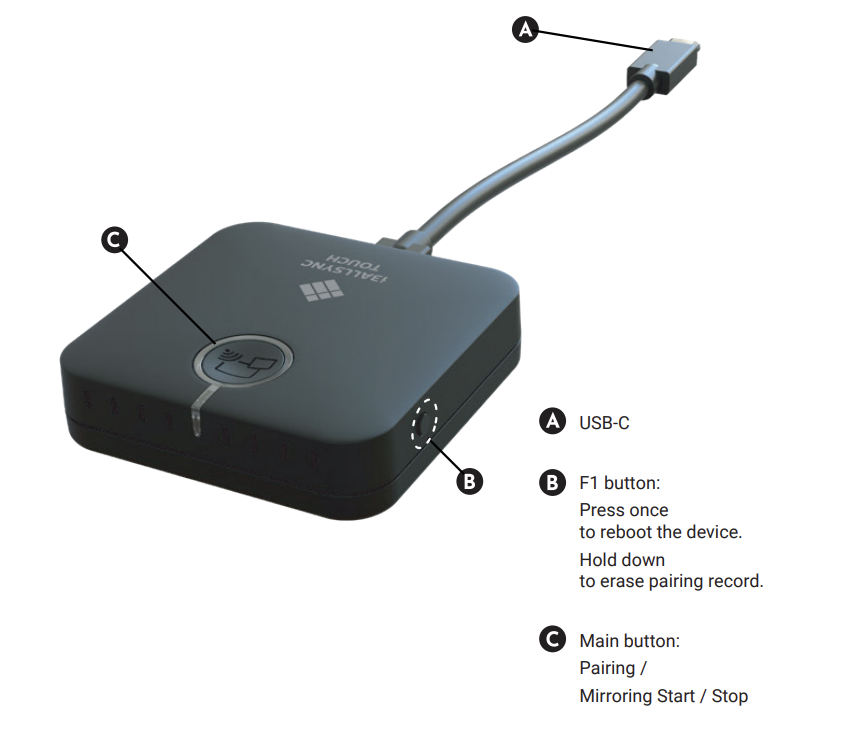

TX45-C USB-C transmitter:
-

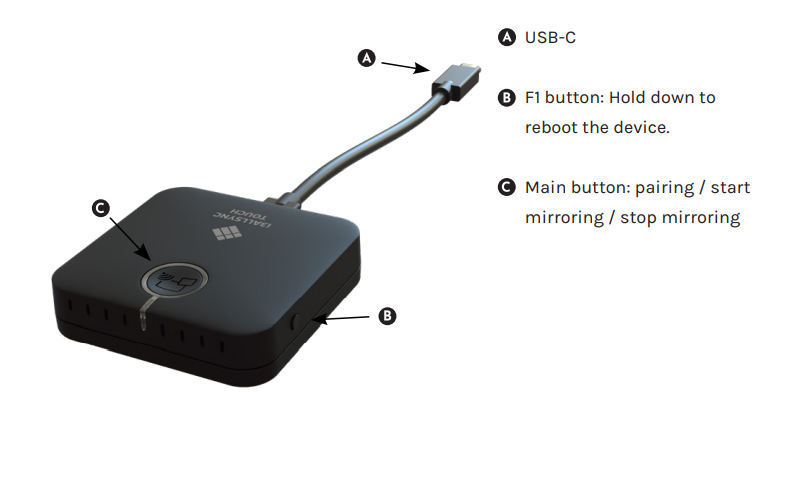

Buttons
-
LED
|
LED |
Behavior |
Definitions |
|---|---|---|
|
Green |
Lights up constantly |
TX45-C finds Receiver successfully. |
|
Blinks |
TX45-C connects to router successfully but can't find Receiver. |
|
|
Blue
|
Lights up constantly |
TX45-C is presenting (You can see the mirroring on the i3TOUCH.) |
|
Yellow |
Blinks |
TX45-C is connecting to Receiver, but TX45-C detects no USB-in signal. |
|
Purple |
Blinks constantly |
TX45-C is processing firmware update. (Note. Do not remove the power during firmware update.) |
|
Blinks 5 times |
TX45-C is deleting the pairing record. |
|
|
White |
Blinks |
TX45-C is under pairing process. |
|
Red |
Blinks 1 time and stops 3 seconds (loop) |
TX45-C has no Receiver pairing data (Normally happens when first use or the pairing record has been deleted.) |
|
Blinks 3 time and stops 3 seconds (loop) |
TX45-C cannot find the designated network SSID. |
|
|
Blinks 5 time and stops 3 seconds (loop) |
TX45-C is able to find the designated network SSID, but the stored password is wrong. |

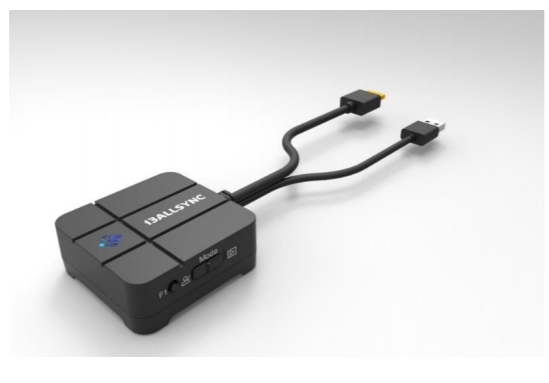

TX45-H HDMI transmitter:
-

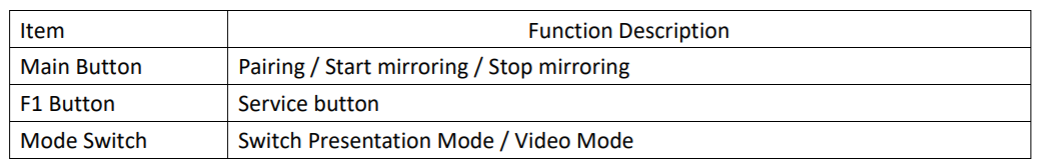

Buttons
-
LED
|
LED |
Behavior |
Definitions |
|---|---|---|
|
Green |
Lights up constantly |
TX45-H finds Receiver successfully. |
|
Blinks |
TX45-H connects to router successfully but can't find Receiver. |
|
|
Blue
|
Lights up constantly |
TX45-H is presenting (You can see the mirroring on the i3TOUCH.) |
|
Yellow |
Blinks |
TX45-H is connecting to Receiver, but TX45-H detects no HDMI signal. |
|
Purple |
Blinks constantly |
TX45-H is processing firmware update. (Note. Do not remove the power during firmware update.) |
|
Blinks 5 times |
TX45-H is deleting the pairing record. |
|
|
White |
Blinks |
TX45-H is under pairing process. |
|
Red |
Blinks 1 time and stops 3 seconds (loop) |
TX45-H has no Receiver pairing data (Normally happens when first use or the pairing record has been deleted.) |
|
Blinks 3 time and stops 3 seconds (loop) |
TX45-H cannot find the designated network SSID. |
|
|
Blinks 5 time and stops 3 seconds (loop) |
TX45-H is able to find the designated network SSID, but the stored password is wrong. |
