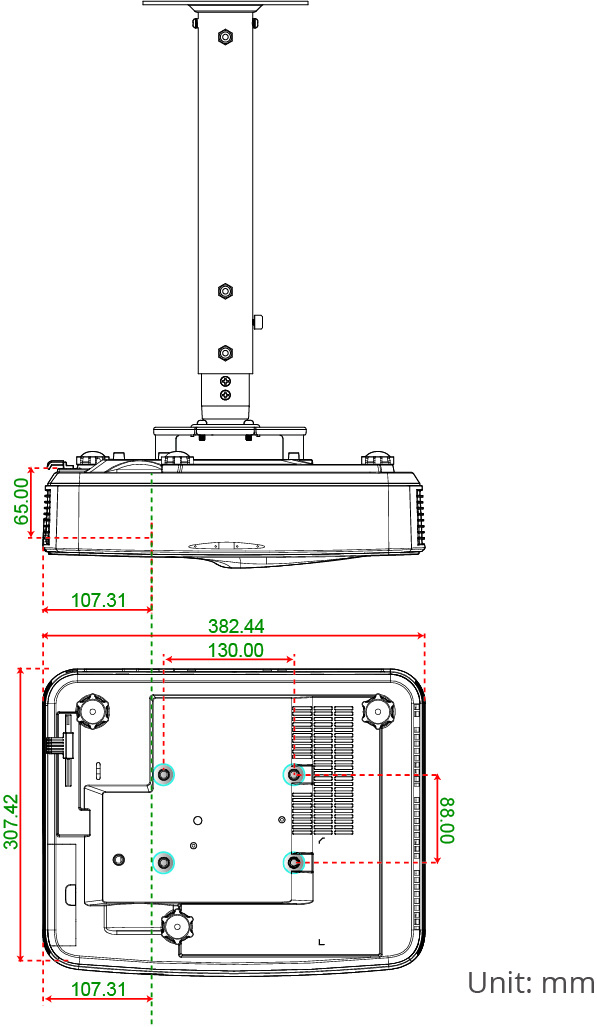

Wall Mount Installation

Wall Mount Installation

If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

1. Screw type: M4*3

2. Maximum screw length: 11 mm

3. Minimum screw length: 8 mm

Please note that damage resulting from incorrect installation will void the warranty.

Warning!

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mountingplate.

• Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

• Avoid installing the projector near a heat source.
