RS232 Commands and Protocol Function List
RS232 Port Setting
|
Items |
Method |
|
Communication Method |
Asynchronous Communication |
|
Bits per seconds |
19200 |
|
Data bits |
8 bits |
|
Parity |
None |
|
Stop bits |
1 |
|
Flow control |
None |

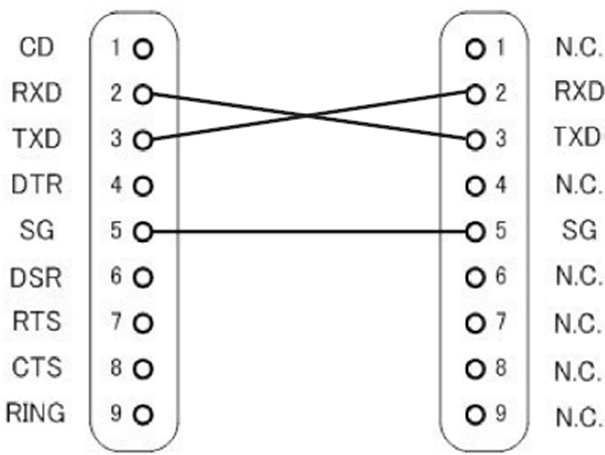

RS232 Signals Connection
Computer COM Port Projector COM Port
(D-Sub 9pin connector) (D-Sub 9pin connector)
RS232 shell is grounded.
Commands Set List
|
Command Description |
ASCII Code |
Projector Return |
n value |
Note |
|
Power |
#0000 n |
|
0 : Off 1 : On |
|
|
Emulate Remote |
#0001 n |
|
1 : Up 2 : Left 3 : Right 4 : Down 5 : Menu 6 : Source 7 : V. Keystone+ 8 : V. Keystone- 9 : Volume+ 10 : Volume- |
|
|
Resync |
#0002 1 |
|
|
VGA only |
|
AV Mute (Blank) |
#0003 n |
|
0 : Off 1 : On |
|
|
Freeze |
#0004 n |
|
0 : Unfreeze 1 : Freeze |
|
|
Input Source |
#0005 n |
|
1 : VGA 3 : HDMI 1 4 : HDMI 2 |
|
|
Color Mode |
#0010 n |
|
1 : Bright 2 : PC 3 : Movie 4 : Game 5 : User |
|
|
Brightness |
#0011 n |
|
0~100 |
|
|
Contrast |
#0012 n |
|
0~100 |
|
|
Sharpness |
#0013 n |
|
0~10 |
|
|
Aspect Ratio |
#0020 n |
|
1 : Auto 2 : 4:3 3 : 16:9 4 : 16:10 / Ultra Wide |
|
|
Zoom |
#0021 n |
|
0 : Zoom- 1 : Zoom+ |
|
|
Vertical keystone correction |
#0022 n |
|
|
|
|
Horizontal keystone correction |
#0024 n |
|
|
|
|
Ceiling Mount |
#0023 n |
|
1 : Front 2 : Rear 3 : Front Ceiling 4 : Rear Ceiling |
|
|
Language |
#0030 n |
|
1 : English 2 : German 3 : Swedish 4 : French 5 : Arabic 6 : Dutch 7 : Norwegian 8 : Danish 9 : Simplified Chinese 10 : Polish 11 : Korean 12 : Russian 13 : Spanish 14 : Traditional Chinese 15 : Italian 16 : Portuguese 17 : Turkish 18 : Japanese |
|
|
Menu Location |
#0031 n |
|
1 : Top Left 2 : Top Right 3 : Center 4 : Bottom Left 5 : Bottom Right |
|
|
Reset |
#0032 1 |
|
|
|
|
Mute |
#0040 n |
|
0 : Off 1 : On |
|
|
Volume |
#0041 n |
|
0 ~ 15 |
|
|
Microphone Volume |
#0042 n |
|
0~30 |
|
|
Auto Power Off (min) |
#0050 n |
|
0~120 |
Step = 5 |
|
High Altitude mode |
#0051 n |
|
0 : Off 1 : On |
|
|
|
|
|
|
|
|
Color Mode Read |
#00110 1 |
Okn |
n : 1/2/3/4/5 = Bright / PC / Movie /Game / User |
|
|
Brightness Read |
#00111 1 |
Okn |
n: Brightness value |
|
|
Contrast Read |
#00112 1 |
Okn |
n: Contrast value |
|
|
Sharpness Read |
#00113 1 |
Okn |
n: Sharpness value |
Video only |
|
Aspect Ratio Read |
#00120 1 |
Okn |
n : 1/2/3/4 = Auto / 4:3 / 16:9 / 16:10 (Ultra Wide) |
|
|
Input Source (curr. src) |
#00160 1 |
Okn |
n : 0/1/3/4/5 = None / VGA / HDMI-1 / HDMI-2 / Video |
|
|
Sofware Version |
#00161 1 |
Okddd |
ddd : FW version |
|
|
Information |
#00162 1 |
Okabbbbccdddee |
a : Power Status / b : LD Hour / c : Input Source / d : Firmware Version / e : Color mode |
|
|
LAN FW Version |
#00166 1 |
Okn |
Ddd : LAN FW version |
|
|
MCU FW Version |
#00167 1 |
Okn |
Ddd : MCU FW version |
|
