In rare cases, you will be suggested to upgrade the firmware for your MDM2/MRX2.
The firmware update file is a .zip file, and the .zip file supports both MDM2 and MRX2 firmware updates.
Please follow the below steps to perform the MDM2 firmware update:
-
Make sure the laptop does not have any MDM2 or MRX2 plugging in.
-
Remove MDM2's battery.
-

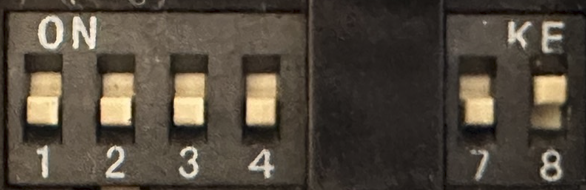

Switch the number 8 dip switch to enable OTA mode, like below:
-
Open the Motion 2 application and browse to the Settings menu.
-
Use a Type-C to Type-C cable, and connect MDM2 to the laptop.
-
Verify that the blue LED lights up, which indicates the module is powered, and enter OTA mode.
-

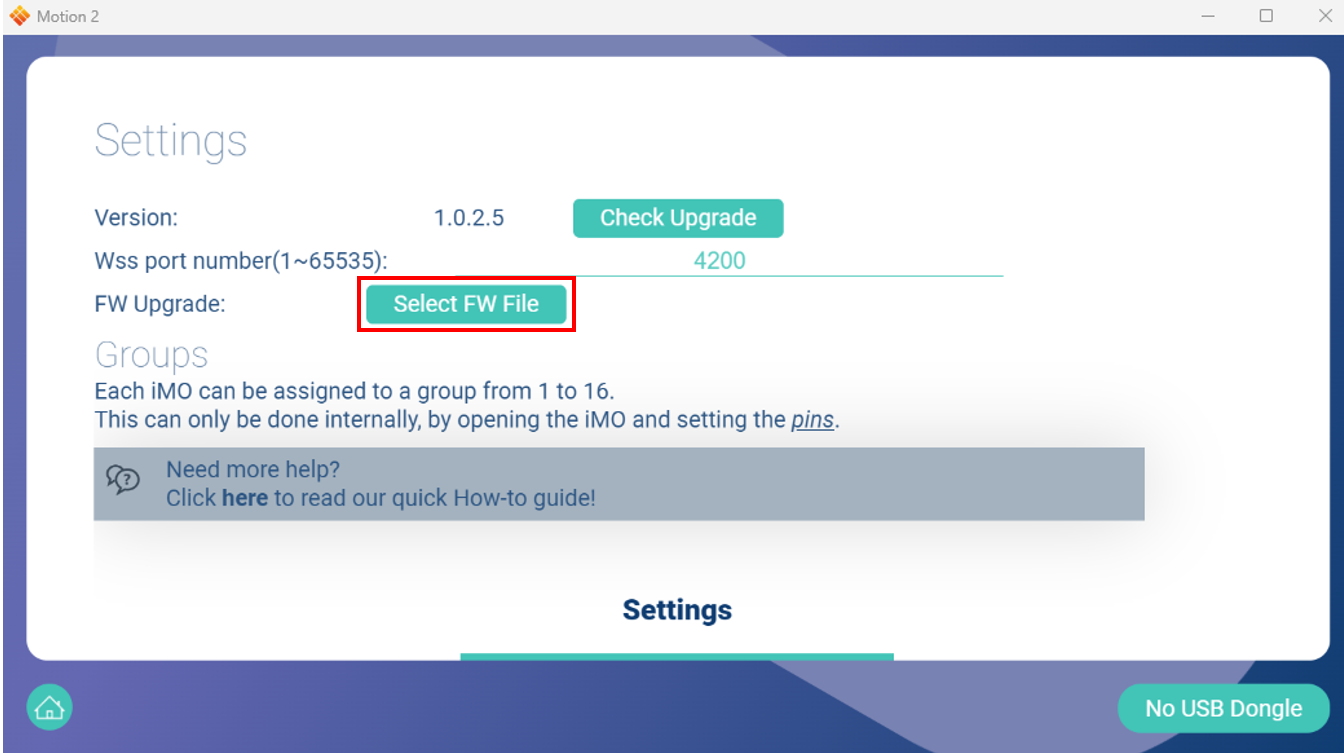

Press the “Select FW File” button to pick the designated FW file.
-
Download the Firmware for the Motion 2 Modules → Motion 2 Modules Firmware
-
Observe the update process and confirm the MDM2 module FW update is successful.
-
Remember to switch the number 8 dip back to exit firmware update mode after the update process.
